Large Heating Chamber CS-2A-3000 Shuttle Rotomolder, Heavy Duty Double Arm Rotational Molding Machine For Big Plastic Tanks

Brand Name:	YingChuang
Model Number:	CS-2A-3000
MOQ:	1 Acre/Acres
Price:	Advisory Service
Packaging Details:	Wooden box

Detail Information

Product Description

Detail Information

Place of Origin:

China Jiangsu

Certification:

CE/ISO9001

Brand:

YINGCHUANG

Product Name:

Large Heating Chamber CS-2A-3000 Shuttle Rotomolder, Heavy Duty Double Arm Rotational Molding Machine For Big Plastic Tanks

Condition:

Dimension(L*W*H):

Consultation Service

Applicable Venues:

Mass Production Of Large Hollow Plastic Storage Tanks, Thick-Wall Industrial Plastic Containers, Oversized Sanitation Equipment Housings, Large Floating Plastic Buoys, Big Hollow Plastic Engineering Parts

Large Space Advantage:

Extra Wide & Long Heating Cabin, Compatible With Oversized Molds That Carousel Machines Cannot Process

Load Bearing Advantage:

Reinforced Alloy Heavy Arms + Independent High-torque Drive, Support Full-load Heavy Large Tank Molds For Long-time Operation

Heating Uniformity Advantage:

Full Wrapped Thermal Insulation + Multi-channel Circulating Hot Air, Tiny Internal Temperature Difference To Avoid Uneven Tank Wall Thickness

Supply Ability:

Can produce 3-5 machines per month

Highlight:

Large heating chamber rotomolding machine

Heavy duty double arm rotomolder

Shuttle rotomolding machine for plastic tanks

Product Description

Large Heating Chamber CS-2A-3000 Shuttle Rotomolder, Heavy Duty Double Arm Rotational Molding Machine For Big Plastic Tanks

Product Overview

Large Heating Chamber CS-2A-3000 Shuttle Rotomolder, Heavy Duty Double Arm Rotational Molding Machine For Big Plastic Tanks is a heavy-duty shuttle rotomolding equipment independently developed and manufactured by YINGCHUANG Rotomolding. It adopts mature double-arm shuttle circulation structure, equipped with ultra-large integrated sealed heating cabin, independent cooling station and two heavy-load mold rotating arms, specially designed for mass production of large hollow plastic products such as large plastic storage tanks, thick-wall plastic containers and oversized equipment housings.

The CS-2A-3000 shuttle rotomolder features super-large effective heating space, which can match oversized rotomolds that carousel machines cannot hold. Each rotating arm is equipped with high-torque heavy-duty drive system, with strong bearing capacity and stable rotation under full load. The heating cabin adopts full-surround high-density thermal insulation layer and optimized hot air circulating system, paired with intelligent split constant temperature PLC control system, uniform internal temperature, low temperature difference, stable molding quality for large thick-wall plastic parts. We support full customized upgrade services for arm load, heating power, air/water cooling mode, control program and overhead crane matching platform according to customer workshop layout and large tank production demands.

Key Features & Benefits

Extra Large Sealed Heating Cabin, Suitable For Oversized Plastic Tank Molds

Expanded integrated closed heating chamber with wide internal space, compatible with various large-size plastic tank molds, solving the space limitation problem of small rotomolding equipment and meeting the production demand of big capacity hollow plastic vessels.
Heavy-Duty Double Arm Shuttle Circulation Structure, High Continuous Production Efficiency

Two independent heavy-load rotating arms alternately send molds into heating and cooling areas for non-stop cyclic production. Heating and cooling processes run simultaneously without waiting downtime, effectively shortening single large tank molding cycle and lifting factory daily output of large plastic products.
High-Torque Independent Drive System, Strong Bearing & Stable Full-Load Rotation

Each rotating arm is fitted with separate heavy-duty drive motor and reinforced speed reducer, strong load capacity to bear large weight molds of big plastic tanks. Rotation runs smoothly without jitter under long-time full-load high-temperature operation, ensuring uniform melting of thick plastic raw materials.
Full Insulation Hot Air Circulation Heating, Small Cabin Temperature Difference

The heating cabin is wrapped with thick high-temperature resistant thermal insulation cotton all around, internal multi-channel hot air circulation duct design to realize all-round uniform heat radiation. Temperature difference inside cabin is controlled within a tiny range, effectively avoiding uneven wall thickness, bubbles and cold spots on large plastic tanks.
Complete Safety Auxiliary Platform & Wide Customization Range

Equipped with complete multi-layer operating stair stand, safety isolation protective door and reserved overhead crane matching interface for convenient loading/unloading of heavy large molds. Machine configurations including arm bearing load, heating power, cooling mode and PLC automatic control logic can be fully customized to match diversified production demands of large plastic tank manufacturers.

Specifications:

Model No	Floor Size				Biggesttank made
Model No	L(m)	W(m)	H(m)	Operation platform	Biggesttank made
CS-2A-1000	4	2.8	2	×	150L
CS-2A-1600	8	3.6	2.8	×	500L
CS-2A-2000	10	4.6	3.2	×	1000L
CS-2A-2500	12.5	6.2	4	√	2500L
CS-2A-3000	14	7	4.2	√	4500L
CS-2A-3500	16.5	8	4.5	√	7000L
CS-2A-4000	17.5	9	5.2	√	10000L
CS-2A-4500	19	10	5.9	√	14000L
CS-2A-5000	21	11	6.5	√	20000L
CS-2A-5500	23	12	7	√	25000L
CS-2A-6000	24.5	13	7.2	√	35000L
CS-2A-6500	27	15	8	√	40000L
CS-2A-7500	32	17	9.5	√	50000L

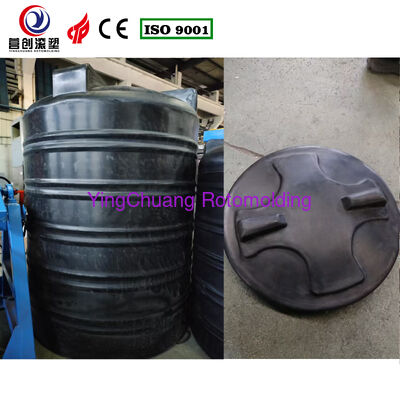

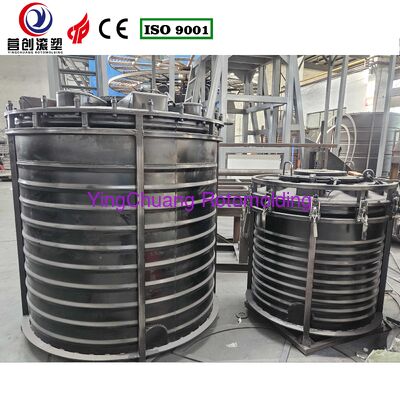

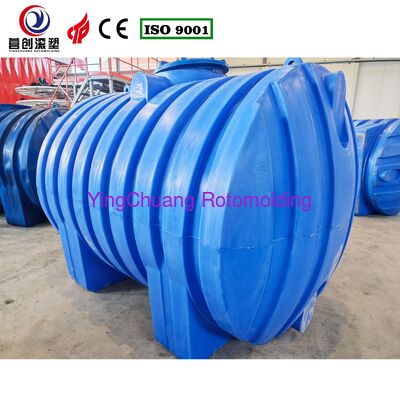

Photos for reference
