OEM Large Pipe Flange Rotomold, Thickened Aluminum Alloy Cylindrical Rotational Mold For Plastic Pipe Tank Manufacturing

Brand Name:	YingChuang
Model Number:	YC-MOLD-PIPE-FLANGE
MOQ:	1 Piece
Price:	Advisory Service
Packaging Details:	Wooden box
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China Jiangsu

Certification:

CE/ISO9001

Features:

: Fast Heat Conduction Thick Aluminum Mold, Split Flange Easy Demolding, Stable Anti-Expansion Lock Frame, High Temperature Wear Resistant Surface

Mold Material:

Thickened Cast Aluminum Alloy Mold Cavity

Product Name:

OEM Large Pipe Flange Rotomold, Thickened Aluminum Alloy Cylindrical Rotational Mold For Plastic Pipe Tank Manufacturing

Craft:

Cast Aluminum Forming, CNC Polishing, Split Flange Welding, Lock Frame Cutting & Welding Assembly

Standard Structure:

Segmented Cylindrical Cavity

Applicable Venues:

Plastic Pipeline Tank Mass Production, Drainage Pipe Container Processing, Cylindrical Plastic Vessel Rotomolding, Environmental Plastic Pipe Fittings Manufacturing

Custom Service:

OEM, Support Customized Mold Size, Inner Cavity Diameter, Length And Internal Structure As Per Customer Drawings

Application:

Large Split Pipe Flange Rotomold For Drainage Plastic Tank, Custom Size Cylindrical Rotational Mold For Plastic Container, High Temp Resistant Detachable Flange Mold For Sewage Vessel, OEM Adjustable Cavity Rotomould For Plastic Pipe Fittings

Supply Ability:

Can produce 8-10 molds per month

Highlight:

OEM large pipe flange rotomold

thickened aluminum alloy rotomolding mould

cylindrical rotational mold for plastic pipe

Product Description

OEM Large Pipe Flange Rotomold, Thickened Aluminum Alloy Cylindrical Rotational Mold For Plastic Pipe Tank Manufacturing

Product Overview

The OEM Large Pipe Flange Rotomold, Thickened Aluminum Alloy Cylindrical Rotational Mold For Plastic Pipe Tank Manufacturing is a split cylindrical rotomolding mold independently developed and produced by Yingchuang Rotomolding. The mold adopts thickened integral cast aluminum alloy structure, split flange combined design, matched with multi-clamp locking frame, with good thermal conductivity, uniform heating and long service life. It is specially used for mass production of plastic pipes, pipeline tanks, drainage vessels and cylindrical plastic containers. We provide OEM size customization service for pipeline manufacturers, plastic product factories and rotomolding processing plants. During customization, mold outer diameter, length, wall thickness and internal cavity structure can be adjusted according to production requirements.

Key Features & Benefits

Thickened Cast Aluminum Alloy Mold Body, Fast Heat Conduction & High Forming Efficiency

The whole mold cylinder is made of thickened high-purity cast aluminum, excellent thermal conductivity during rotomolding heating, uniform temperature inside the cavity, effectively avoiding uneven wall thickness of plastic finished products, improving finished product yield and production efficiency.

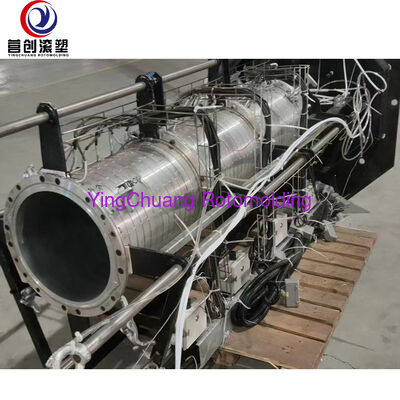

Split Pipe Flange Combined Structure, Easy Demolding & Convenient Production

Adopts segmented split flange splicing structure, equipped with multiple quick-release locking clamps on both ends, fast opening and closing, simple demolding operation after molding, greatly shortening the single-cycle production time of plastic pipe tanks.

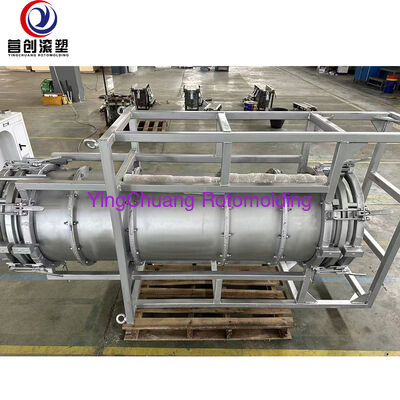

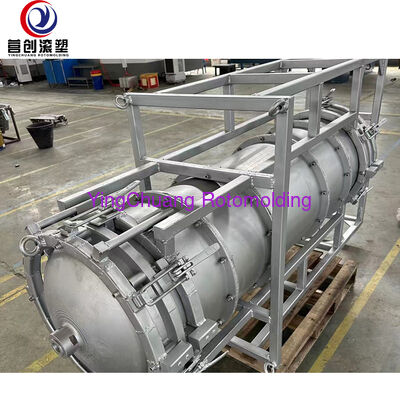

Integrated Heavy-Duty Lock Frame, Stable & Safe Rotomolding Processing

Supporting customized metal locking frame with lifting lugs, the frame tightly fixes each mold section to prevent mold expansion and deformation under high-temperature rotation. It can be matched with various rotary molding machines for stable long-time batch production.
Multi-Dimensional OEM Customization, Adjustable Core Mold Parameters

Customers can customize the overall size of the pipe flange mold according to product drawings, including cylinder length, inner cavity diameter, flange thickness and internal structural layout, to meet the production standards of different specifications of plastic pipeline tanks.
Wear & High Temperature Resistant Mold Surface, Long Service Life

The mold surface is polished and anti-oxidation treated, resistant to long-term high-temperature rotary baking and repeated opening and closing wear, not easy to rust and deform, reducing later mold maintenance frequency and cost.

Product Specifications

Mold Material: Thickened cast aluminum alloy mold cavity, carbon steel locking frame, high-strength quick-release lock clamps
Production Craft: Cast aluminum forming, CNC polishing, split flange welding, lock frame cutting and welding assembly
Standard Structure: Segmented cylindrical cavity, double-end split flange, multi-point quick lock clamps, integrated lifting lock frame
Applicable Scenarios: Plastic pipeline tank mass production, drainage pipe container processing, cylindrical plastic vessel rotomolding, environmental plastic pipe fittings manufacturing
Custom Service: OEM, support customized mold size, inner cavity diameter, length and internal structure as per customer drawings
Core Performance: Fast heat conduction thick aluminum mold, split flange easy demolding, stable anti-expansion lock frame, high temperature wear resistant surface, adjustable mold size and inner cavity structure, suitable for mass rotomolding production

Application Scenarios

Plastic Pipeline Manufacturing Factories

Large split pipe flange rotomold, thick aluminum cylindrical mold for drainage plastic tank production

Rotomolding Processing & OEM Factories

Custom size pipe flange rotational mold, multi-clamp lock frame mold for cylindrical plastic container

Environmental Plastic Product Manufacturers

High temperature resistant pipeline tank rotomold, detachable split flange mold for sewage plastic vessel

Mold Wholesale & Customization Suppliers

OEM adjustable cavity pipe flange mold, heavy duty locking frame rotational mould for plastic pipe fittings

FAQ

Q1: What customization services are available for this pipe flange rotomold?
A: We support OEM customization based on customer product drawings, adjustable mold cylinder length, inner cavity diameter, flange thickness and internal cavity layout to match different plastic pipe tank production demands.
Q2: Why choose cast aluminum alloy as the mold material?
A: Cast aluminum has outstanding thermal conductivity, uniform heating during rotomolding, stable wall thickness of finished plastic products, and the thickened structure can resist long-term high temperature rotation deformation.
Q3: Is the split flange structure safe for continuous mass production?
A: Equipped with multi-group reinforced quick lock clamps and integrated locking frame, the mold sections are tightly fixed without expansion, safe and stable for long-cycle batch rotomolding processing.
