Customizable Rock And Roll Rotomoulding Machines For Kayak

Brand Name:	yingchuang
Model Number:	CO-5000
MOQ:	1 Acre/Acres
Price:	Advisory Service
Packaging Details:	Wooden box
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE, ISO9001

Application:

Manufacturing Plant

Control System:

Delta PLC Control

Power:

Advisory Service; 6KW-11KW

Type:

Rotomoulding Machines

Speed:

Durability:

Key Selling Points:

Automatic

Voltage:

380V 50Hz 3Phases Or As Your Requirment

Supply Ability:

Can produce 8-10 machines per month

Highlight:

Rock Roll Rotomoulding Machine

Customizable Rotomoulding Machine

Kayak Rotomoulding Machine

Product Description

Product Description:

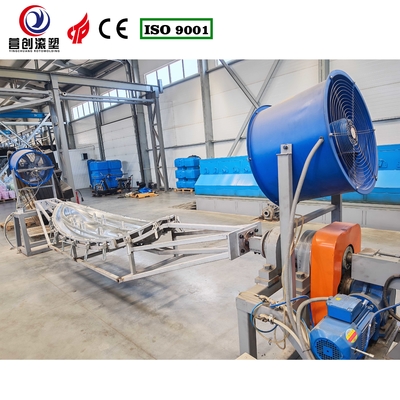

Customizable Rock And Roll Rotomoulding Machines For Kayak 0

A kayak rotomolding machine (Rock n Roll machine) is a specialized type of rotational molding (rotomolding) equipment optimized for producing large, hollow plastic products like kayaks, canoes, and small boats. The "Rock n Roll" mechanism enhances material distribution, ensuring uniform wall thickness and high structural integrity—critical for watercraft durability.

What Makes a "Rock n Roll" Rotomolding Machine Unique?

Unlike standard biaxial rotomolding machines (which rotate on two perpendicular axes), a Rock n Roll machine adds a tilting ("rocking") motion to the primary rotation ("rolling"). This improves plastic powder flow in large, asymmetrical molds (like kayaks), reducing material pooling and weak spots.

Rock n Roll Kayak Rotomolding Machine Components

1.Rocking Mechanism

Hydraulic or servo-controlled tilting (typically ±20° to ±45°).

Works in sync with primary/secondary rotation.

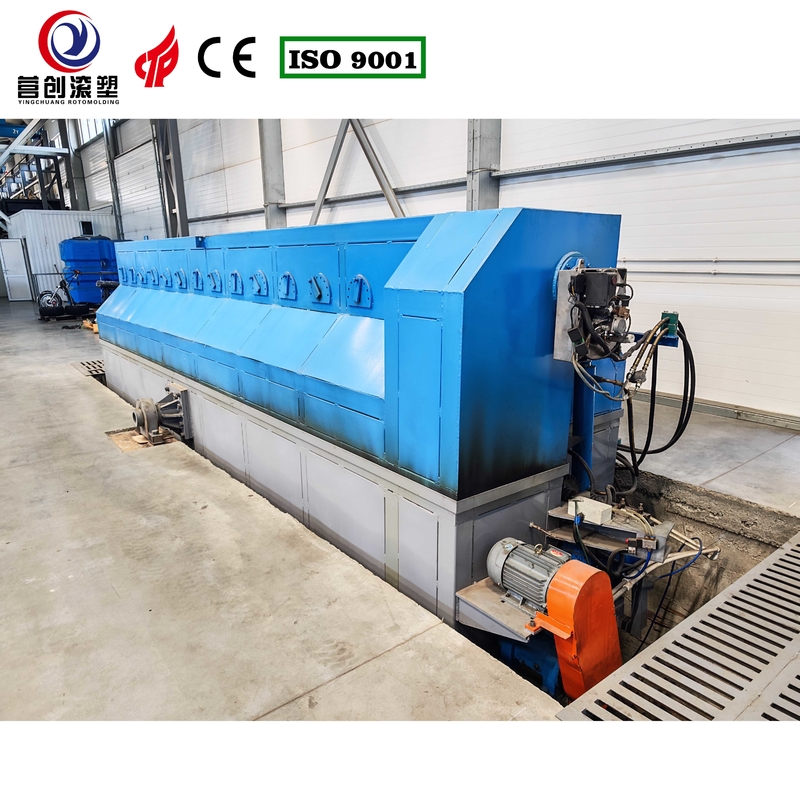

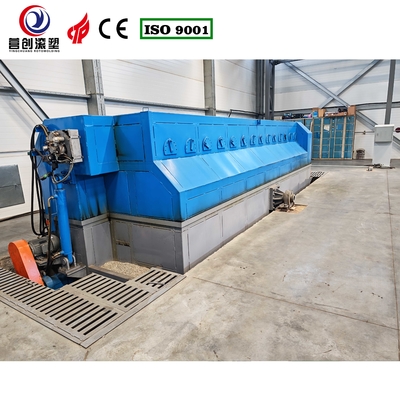

2.Heating Chamber

Gas-fired or electric oven (300–400°C) for melting polyethylene (LLDPE/HDPE).

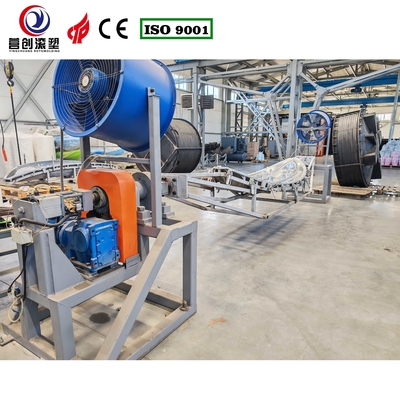

3.Cooling Station

Water mist or forced-air cooling to solidify the kayak.

4.Mold Mounting Frame

Heavy-duty frame to support large kayak molds (up to 5m+ in length).

5.Control System

PLC automation for precise rocking angle, rotation speed, and temperature.

Kayak Production Process Using a Rock n Roll Machine

Mold Preparation – Apply release agent; pre-load plastic powder (LLDPE/HDPE + colorants).

Loading – Secure mold onto the rocking frame.

Heating Phase – Mold rotates + rocks in oven (15–40 mins, ~300°C).

Cooling Phase – Mold moves to cooling station while still rocking.

Demolding – Kayak is removed, edges trimmed, and accessories added.

Top Manufacturers of Rock n Roll Rotomolding Machines

Rotoline (Brazil) – Advanced rocking systems for marine applications.

Ferry Industries (USA/Canada) – Custom kayak/canoe rotomolding solutions.

Persico Rotomolding (Italy) – High-precision machines for composite molds.

Caccia Engineering (Italy) – Compact Rock n Roll units for mid-scale production.

Buying Considerations

Mold Size – Ensure the machine fits your kayak mold (typical kayak molds: 3–5m long).

Material Compatibility – Some machines support XLPE (cross-linked PE) for extra toughness.

Automation Level – PLC controls vs. manual operation.

After-Sales Support – Technical service for maintenance/repairs.

Key Features:

✅ Tilting + Rotation – The mold rocks back and forth (like a seesaw) while simultaneously rotating, ensuring even coating.

✅ Ideal for Long, Narrow Molds – Perfect for kayaks, canoes, and surfboards.

✅ Better Material Distribution – Reduces the need for manual mold shaking or secondary finishing.

✅ Energy Efficient – Some models use indirect heating (hot air) instead of open flames.

Features:

Product Name: Rock And Roll Rotomoulding Machines
Durability: High
Type: Rotomoulding Machines
Name: Rock And Roll Rotomoulding Machines
Weight: Advisory Service
Voltage: 380V 50Hz 3Phases Or As Your Requirement

Technical Parameters:

Name	Rock And Roll Rotomoulding Machines
Type	Rotomoulding Machines
Voltage	380V 50Hz 3Phases Or As Your Requirement
Durability	High
Warranty	1 Year
Control system	Delta PLC Control
Weight	Advisory Service
Key Selling Points	Automatic
Noise	Low
Power	Advisory Service; 6KW-11KW

Applications:

Product Application Occasions and Scenarios for the Rock And Roll Rotomoulding Machines:

1. Industrial Production: The Rock And Roll Rotomoulding Machines by yingchuang (Model CO-5000) are perfect for various industrial applications requiring rotational molding processes. The machines, originating from China, are designed to meet the highest quality standards with certifications such as CE and ISO9001.

2. Customized Manufacturing: These rotomoulding machines are ideal for producing customized plastic products, making them suitable for businesses involved in creating unique designs and shapes. The minimum order quantity of 1 Acre/Acres ensures flexibility for small to large scale production.

3. Efficient Production: With a fast speed and low noise operation, the Rock And Roll Rotomoulding Machines offer efficient production capabilities. The Delta PLC Control system provides precise control over the rotational molding process, resulting in consistent and high-quality output.

4. Packaging Industry: The machines are well-suited for the packaging industry, where precision and reliability are crucial. The wooden box packaging details ensure safe transportation and delivery of the equipment to the desired location.

5. Timely Delivery: Customers can rely on a prompt delivery time of 30 work days, allowing for quick setup and implementation of the rotomoulding machine in their production facilities.

6. Supply Chain Management: The supply ability of producing 8-10 machines per month ensures a steady and reliable supply of the Rock And Roll Rotomoulding Machines to meet the demands of various industries.

7. Warranty Assurance: The 1-year warranty provided with the product gives customers peace of mind regarding the durability and performance of the rotomoulding machine.

Customization:

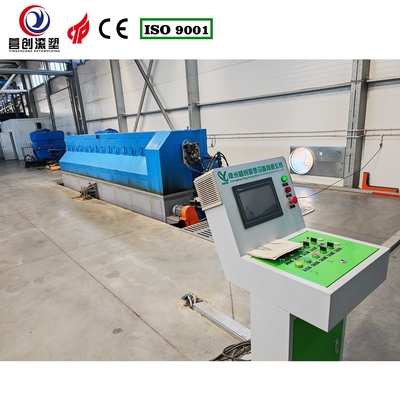

Customizable Rock And Roll Rotomoulding Machines For Kayak 1

Support and Services:

Product Technical Support and Services for Rock And Roll Rotomoulding Machines:

Our technical support team is available to assist you with any questions or issues you may have regarding the operation and maintenance of your Rock And Roll Rotomoulding Machine. We provide detailed product documentation, troubleshooting guides, and training resources to ensure that you can maximize the performance and efficiency of your machine.

In addition, our service team offers maintenance and repair services to keep your machine running smoothly and minimize downtime. Whether you need spare parts, repairs, or on-site support, our team is dedicated to keeping your operation up and running.

Packing and Shipping:

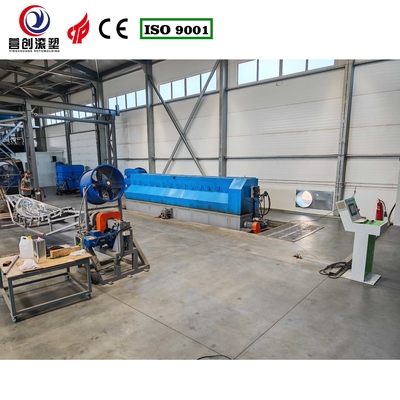

Customizable Rock And Roll Rotomoulding Machines For Kayak 6

FAQ:

Q: What is the brand name of the rotomoulding machine?

A: The brand name is yingchuang.

Q: What is the model number of the rotomoulding machine?

A: The model number is CO-5000.

Q: Where is the rotomoulding machine manufactured?

A: The machine is manufactured in China.

Q: What certifications does the rotomoulding machine have?

A: The machine is certified with CE and ISO9001.

Q: What is the minimum order quantity for the rotomoulding machine?

A: The minimum order quantity is 1 Acre/Acres.
