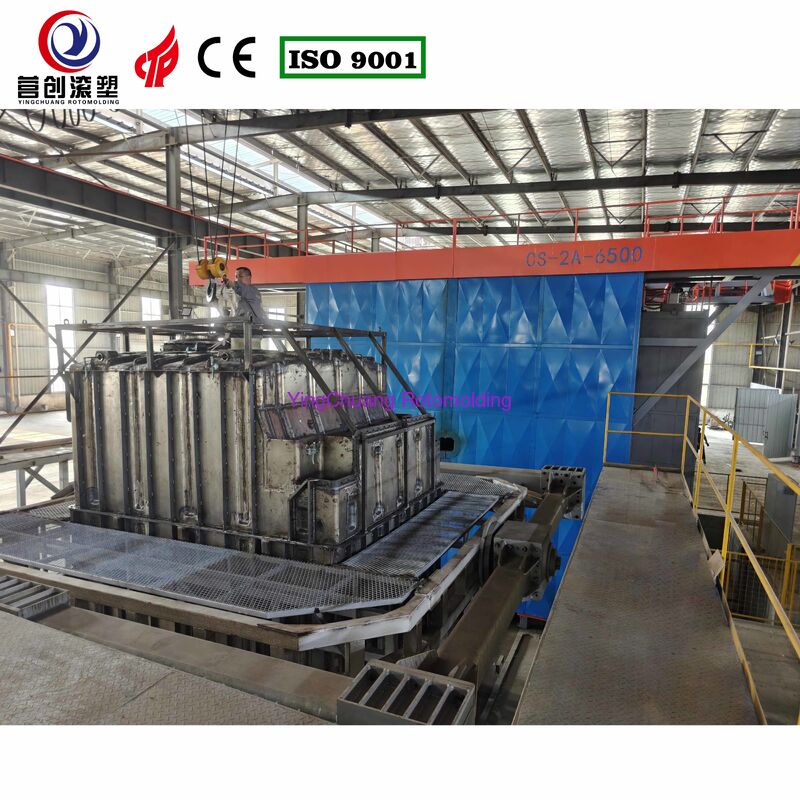

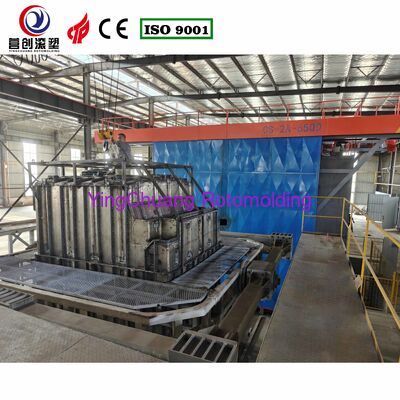

This machine is equipped with a full-length 6.5m sealed insulated heating oven, matched with heavy-duty double bi-axial rotating arms, each arm with independent high-torque bi-axial drive system, capable of installing large customized electrolyte tank molds. Adopt reciprocating shuttle circulation working mode, cooperate with industrial PLC touch screen full automatic intelligent control system, realize synchronous automatic circulation of heating, heat preservation, cooling and mold replacement without manual waiting downtime, greatly improve continuous production efficiency of energy storage tanks. The 6.5m extra long oven adopts full-surround high-density thick thermal insulation cotton and multi-group circulating hot air uniform heating system, tiny internal temperature difference, uniform melting of anti-corrosion LLDPE raw materials, effectively solve defects such as uneven wall thickness, local thin walls, cold spots and bubble leakage of large electrolyte storage tanks. The whole machine frame adopts ultra-thick reinforced carbon steel integral welding, stable structure and strong anti-deformation performance under long-term full-load operation. We support full customization of tank volume, internal anti-corrosion structure, partition layout and mold size according to customers’ energy storage system technical requirements, all equipment parameters, arm load and heating power can be adjusted to match customized energy storage tank molds of various specifications.

1. 6.5 Meters Super Long Fully Insulated Oven, Adapt To Large Custom Energy Storage Tank Molds


   6.5m integral sealed heating chamber with spacious internal space, can install oversized complex structural electrolyte storage tank molds with internal partitions, multi-layer anti-corrosion lining and multi-port liquid inlet/outlet design, fully meet the mold size demand of large-capacity new energy energy storage tanks.
2. Double Heavy-Duty Bi-Axial Rotating Arms, Stable High-Load Rotation For Thick-Wall Anti-Corrosion Tanks


   Two sets of reinforced alloy bi-axial rotating arms with independent high-torque drive motors, strong bearing capacity, low vibration bidirectional rotation, ensure uniform melting of thick-wall LLDPE anti-corrosion raw materials, consistent wall thickness of energy storage tanks to prevent electrolyte leakage.
3. PLC Touch Screen Full Automatic Circulation Control, Unmanned Continuous Mass Production


   Industrial PLC central control with touch screen HMI, all production parameters including oven heating temperature, heating duration, cooling time, bi-axial rotation speed can be visually set on screen. The machine automatically completes shuttle reciprocating circulation without frequent manual operation, reduce labor cost and human operation error rate.
4. Full Surround Uniform Hot Air Heating, Tiny Oven Temperature Difference To Guarantee Anti-Corrosion Tank Quality


   Multi-channel circulating hot air circulation system inside 6.5m oven, full thick thermal insulation layer reduces heat loss, balanced heat absorption of all positions of large molds, effectively avoid local insufficient melting leading to tank wall thinness and electrolyte penetration hidden danger.
5. Ultra-Thick Reinforced Integral Machine Frame, Long-Term Full-Load Anti-Deformation Operation


   Extra thick carbon steel plate integral welding frame, stress relief heat treatment after welding, high structural rigidity, no frame deformation or vibration offset after long-time high-temperature full-load shuttle cycle operation, stable equipment performance for long-term energy storage tank mass production.
6. Full Customization Service Matching Custom Energy Storage Tank Molds


   Support OEM adjustment of rotating arm bearing capacity, oven heating power, shuttle stroke and cooling system according to customer customized electrolyte tank drawing specifications, reserve sufficient installation space for complex multi-partition energy storage tank molds, one-stop equipment customization solution for new energy storage tank manufacturers.
