Shuttle Rotomolding Machine
>
15-30min Cycle Time Rotational Molding Equipment With Adjustable Rotating Speed

15-30min Cycle Time Rotational Molding Equipment With Adjustable Rotating Speed

Brand Name: YINGCHUANG
Detail Information
Place of Origin:
CHANGZHOU
Certification:
CE, ISO9001
Rotating Speed:
Adjustable
Operation Mode:
Automatic
Total Power:
Advisory Service
Voltage:
220V/380V/440V
Product Name:
Shuttle Rotomolding Machine
Cycle Time:
15-30min
Control System:
PLC
Applicable Industries:
Manufacturing Plant
Cooling Mode:
Air Cooling
Cooling Time:
5-15min
Heating Mode:
Electric Heating
Heating Temperature:
Room Temperature-300℃
Material:
Carbon Steel
Max Mold Size:
2000*2000*1000mm
Max Product Volume:
2000L
Max Product Weight:
200kg
Molding Cycle:
30-90s
Power Supply:
380V/50Hz
Rotational Speed:
0-2.5r/min
Size:
6000*4500*4000mm
Temperature Control:
Digital Display
Supply Ability:
3-5 machines per month
Highlight:

Adjustable Speed Rotational Molding Equipment

,

220V Automatic Rotational Molding Equipment

,

Lampshades Shuttle Rotomolding Machine

Product Description

Product Description:

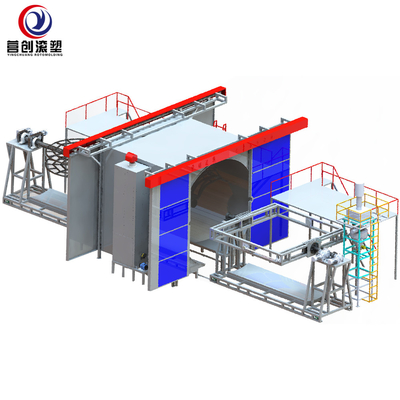

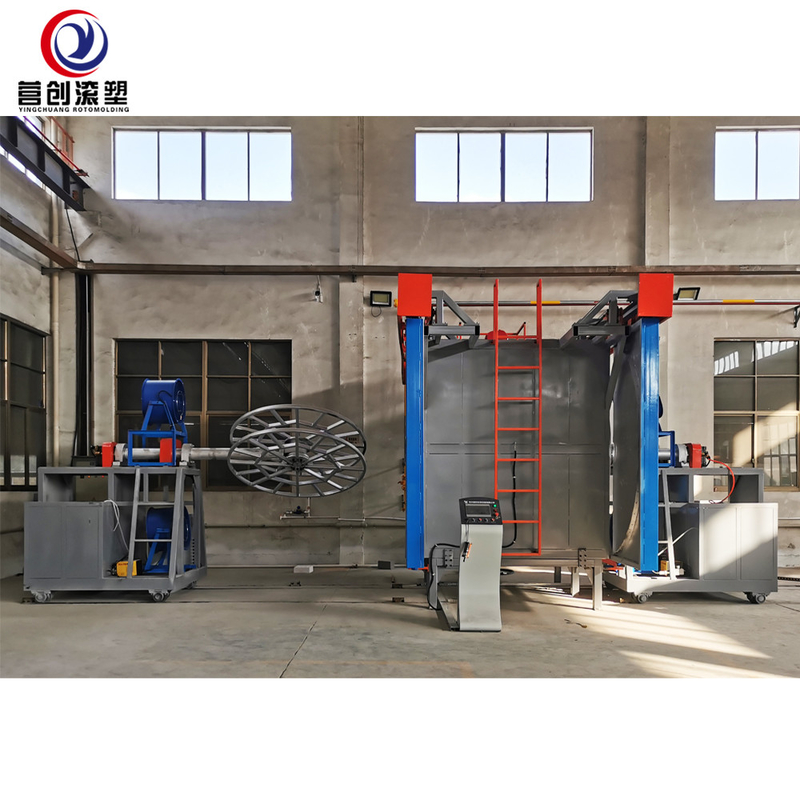

Our Shuttle machine powerfully handles the production of large size products and is the ideal choice for completing different orders simultaneously. Equipped with a patented insulated heating chamber, the machine reduces energy consumption to lower production costs while providing the best quality results. With three heating methods--natural gas, liquefied gas, and diesel oil, and three work arms-- straight-arm, L style offset arm, or C style offset arm, our machine ensures maximum efficiency. Interlock functions and real-time temperature monitoring of the heating chamber allow for control over the quality of products. Additionally, the process formula can be stored and controlled with a Siemens fully-automatic PLC and Touchscreen to work with ease. Furthermore, the machine's automatic inspection of breakdowns and remote fault diagnosis ensure that maintenance and repair are made simpler.
15-30min Cycle Time Rotational Molding Equipment With Adjustable Rotating Speed 0

Features:

The oven has numerous advantages:

1, It has a circular oven structure, which ensures maximum utilization of the space and energy saving.

2, It is made up of modular components, which can be divided into 4 or 5 or 6 pieces.

3, The heating wisdom is based on the principle of hot gas rising. This makes the heating faster and more efficienct and energy-saving.

4, The burner is imported from the Italian Liya Road brand, which makes the oven more reliable.

5, The control system adopts Siemens S7-1200 network cable communication method to collect data. This removes the need of traditional line and provides cleaner line laying.



Technical Parameters:

Parameter Value
Operation Mode Automatic
Product Name Shuttle Rotomolding Machine
After-sales Service Provided Video Technical Support, Free Spare Parts, Field Installation, Commissioning And Training, Field Maintenance And Repair Service, Online Support
Total Power Advisory Service
Applicable Industries Manufacturing Plant
Rotating Speed Adjustable
Voltage 220V/380V/440V
Cycle Time 15-30min
Control System PLC


Applications:

Rotational molding products can be used in a wide variety of applications, ranging from everyday items like water tanks and oil tanks, to military boxes, lampshades, and urea tanks. Other rotational molding products include inspection wells, roadblocks, floats, auto parts, kayaks, boats, and troughs.

This type of molding provides a very versatile product that can be used in a wide range of settings. For example, it is perfectly suited for use in the construction of water tanks and roadblocks, or in the transportation industry for boat hulls and other components. Additionally, rotational molded products are perfect for outdoor activities like kayaking and boating.

In addition to its versatility and ease of use, rotational molding is cost effective and requires fewer materials than traditional injection molding. This makes it a great option for mass producing products quickly and efficiently.

Overall, rotational molding is a great option for producing a variety of products, and has a number of advantages over traditional injection molding.



Customization:

Shuttle Rotomolding Machine from YINGCHUANG
  • Brand Name: YINGCHUANG
  • Place of Origin: CHANGZHOU
  • Certification: CE, ISO9001
  • Delivery Time: 30--60 work days
  • Supply Ability: 3-5 machines per month
  • Total Power: Advisory Service
  • Cycle Time: 15-30min
  • Voltage: 220V/380V/440V
  • Operation Mode: Automatic
  • Rotating Speed: Adjustable

Our Shuttle Rotomolding Machine is the perfect choice for your rotary moulding needs. With YINGCHUANG, you can customize your rotomolding machine to suit your needs. We offer a full range of Shuttle Rotomolding Machine, including CE and ISO9001 certified machines with adjustable rotating speed and automatic operation mode. We can deliver your machine within 30-60 work days and have the capacity to supply up to 3-5 machines per month. We also provide Total Power Advisory Service to help you choose the best machine for your needs.



Packing and Shipping:

The Shuttle Rotomolding Machine will be packaged and shipped in the following way:

  • The machine will be placed in a wooden crate that is strong enough to protect it during transport.
  • The crate will be secured with nylon straps to keep it in place.
  • The crate will be placed on a pallet for easy maneuvering and loading onto a truck.
  • The pallet will be secured with shrink wrap and other strapping materials.
  • The entire shipment will be insured for its full value.15-30min Cycle Time Rotational Molding Equipment With Adjustable Rotating Speed 1
