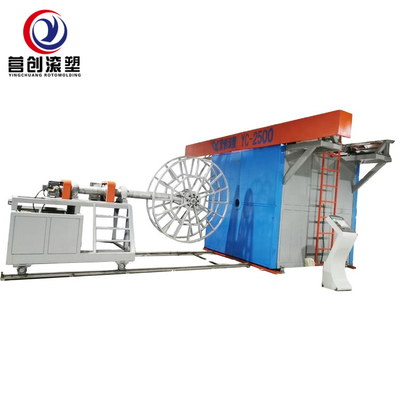

63KW Biaxial Rotational Molding Machine for PP/PE/HDPE/LLDPE

63KW Biaxial Rotational Molding Machine for PP/PE/HDPE/LLDPE

PP Biaxial Rotational Molding Machine

63KW Rotational Molding Machine

HDPE Automatic Rotomoulding Machine

Place of Origin:

Jiangsu, China

Brand Name:

yingchuang

Certification:

CE, ISO9001

Contact Us

Request A Quote
Product Details
Applicable Industries:
Manufacturing Plant
Tank Volume:
2500L, 4500L, 7000L, 10000L, 14000L
Feature:
Automatic
Voltage:
220V/380V/440V
Warranty:
1 Year
Dimension(L*W*H):
1700*1100*5300
Power:
220V/380V/415V
Material:
Stainless Steel
Arm Height:
2m
Arm Length:
3m
Arm Width:
2.5m
Control System:
PLC Control
Dimension:
6m*3m*3m
Heating Mode:
Electric Heating
Max. Product Diameter:
3m
Max. Product Height:
2.5m
Max. Product Weight:
1000kg
Power Consumption:
10KW
Rotational Speed:
0-12r/min
Type:
Bi Axial Rotomoulding Machine
Weight:
3000kg
Product Description

Product Description:

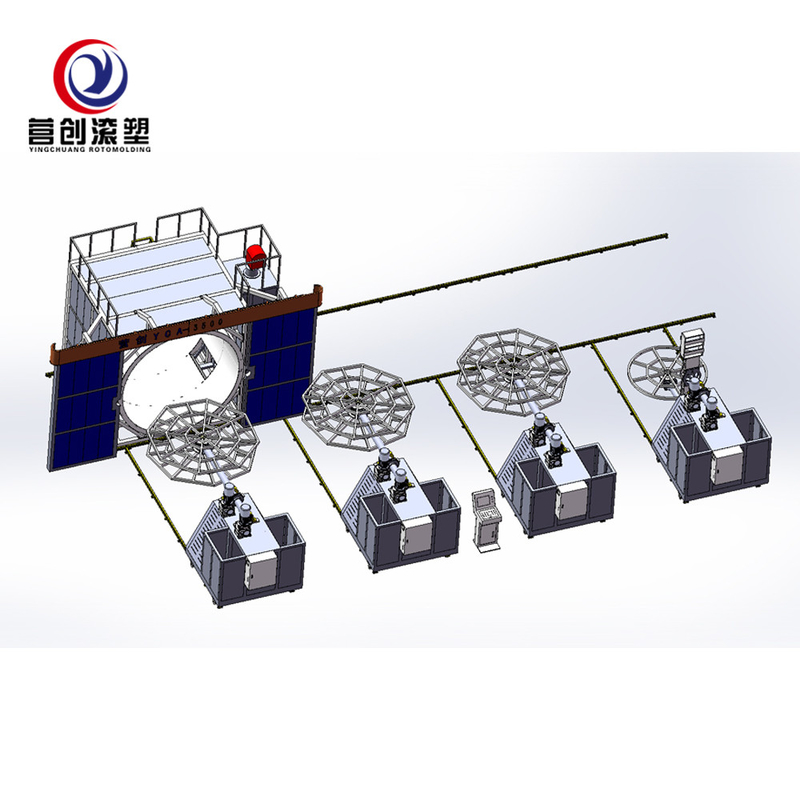

The Shuttle style rotational molding machine features an oven and two mainframes along a straight line, with a cooling chamber and loading station on both sides. When one arm on one side rotates a mold into the oven to heat it up, the molds on the other arm can be demoulded or material can be added.

Advantages of this setup include its flexibility for manufacturing larger products, its high productivity even for smaller products, and the relatively simple and easy-to-maintain equipment. Currently, this rotational molding machine is widely utilized in China.

63KW Biaxial Rotational Molding Machine for PP/PE/HDPE/LLDPE 0

Features:

  • Product Name: Bi Axial Rotomoulding Machine
  • Feature: Automatic
  • Material: PP/PE/HDPE/LLDPE
  • Tank Volume: 2500L, 4500L, 7000L, 10000L, 14000L
  • Voltage: 220V/380V/440V
  • Applicable Industries: Manufacturing Plant
  • Rotational Molding Machine: Perfect for rotational molding and rotational molding equipment
  • Rotary Moulding Machine: Optimal for rotary moulding and rotary moulding equipment


Technical Parameters:

Parameter Value
Applicable Industries Manufacturing Plant
Voltage 220V/380V/440V
Tank Volume 2500L, 4500L, 7000L, 10000L, 14000L
Dimension(L*W*H) 1700*1100*5300
Feature Automatic
Warranty 1 Year
Power 49KW, 62KW, 63KW, 85KW
Material PP/PE/HDPE/LLDPE
Machine Type Rotary Moulding Machine, Rotational Molding Machine, Biaxial Rotational Molding Machine, Two Arm Rotational Machine


Applications:

Yingchuang Bi Axial Rotomoulding Machine is a brand-name, CE and ISO9001 certified product with a minimum order quantity of 1 acre. It is packaged in a wooden box and can be delivered within 30 working days. This rotomolding equipment has a power range of 49KW, 62KW, 63KW and 85KW, and is suitable for use in manufacturing plants. It is made of PP/PE/HDPE/LLDPE and has an automatic feature with a 1-year warranty. This water tank making machine is ideal for making water tanks, and is widely used in the rotomolding industry.



Customization:

Bi Axial Rotomoulding Machine
  • Brand Name: yingchuang
  • Place of Origin: Jiangsu, China
  • Certification: CE, ISO9001
  • Minimum Order Quantity: 1 Acre/Acres
  • Packaging Details: Wooden box
  • Delivery Time: 30 working days
  • Dimension(L*W*H): 1700*1100*5300
  • Feature: Automatic
  • Applicable Industries: Manufacturing Plant
  • Voltage: 220V/380V/440V
  • Tank Volume: 2500L, 4500L, 7000L, 10000L, 14000L

We provide custom services for Bi Axial Rotomoulding Machine, a rotational molding machine, rotational molding equipment, rotational molding equipment manufacturer with premium quality. Our experienced team can offer the best solution for your specific needs.



Packing and Shipping:

Packaging and Shipping for Bi Axial Rotomoulding Machine:

The Bi Axial Rotomoulding Machine will be securely packaged in a wooden crate or metal frame, depending on the size and weight of the machine. The package will be protected with foam and plastic film for additional cushioning. A standard shipping pallet will be placed at the bottom of the package for additional protection.

The package will be transported by ground, air, or sea, depending on the customer's preference and the cost and delivery time.
