10000L Tank Rotational Molding Machine for PP/PE/HDPE/LLDPE Material Made in China

10000L Tank Rotational Molding Machine for PP/PE/HDPE/LLDPE Material Made in China

PE Tank Rotational Molding Machine

10000L Tank Rotational Molding Machine

HDPE Tank Rotomoulding Machine

Place of Origin:

Jiangsu, China

Brand Name:

yingchuang

Certification:

CE, ISO9001

Contact Us

Request A Quote
Product Details
Dimension(L*W*H):
1700*1100*5300
Applicable Industries:
Manufacturing Plant
Voltage:
220V/380V/440V
Warranty:
1 Year
Material:
PP/PE/HDPE/LLDPE
Feature:
Automatic
Tank Volume:
2500L, 4500L, 7000L, 10000L, 14000L
Power:
49KW, 62KW, 63KW, 85KW
Product Description

Product Description:

This machine offers maximum reliability and simplicity in use. It is an ideal choice for high volume production of articles, no matter the different sizes or similar working cycles. Its sturdiness and minimal maintenance are considerable strengths. Also, at request, it can be equipped with 3 or 4 arms that change station concurrently, therefore alternating through the different phases. It has various customising options available, such as a double loading/unloading station and pre-cooling.
This advanced-designed machine provides a host of features; such as full automatic compact for consistent quality products, a sturdy unique mechanical design for uninterrupted operation, an efficient heating chamber for fuel economy, all electrical/mechanical safety interlock for safer work environment, a high efficient LPG/diesel burner for added fuel economy, blowers designed to work under high temperatures, as well as a unique design for easier maintenance and cleaning.

10000L Tank Rotational Molding Machine for PP/PE/HDPE/LLDPE Material Made in China 0

Model No
Floor SizeBiggesttank made
L(m)W(m)H(m)Operation platform
CO-100054.83.8×1000L
CO-50005.85.64.2×5000L
CO-100006.56.34.810000L
CO-300007.87.35.130000L
CO-500009.77.35.850000L


Features:

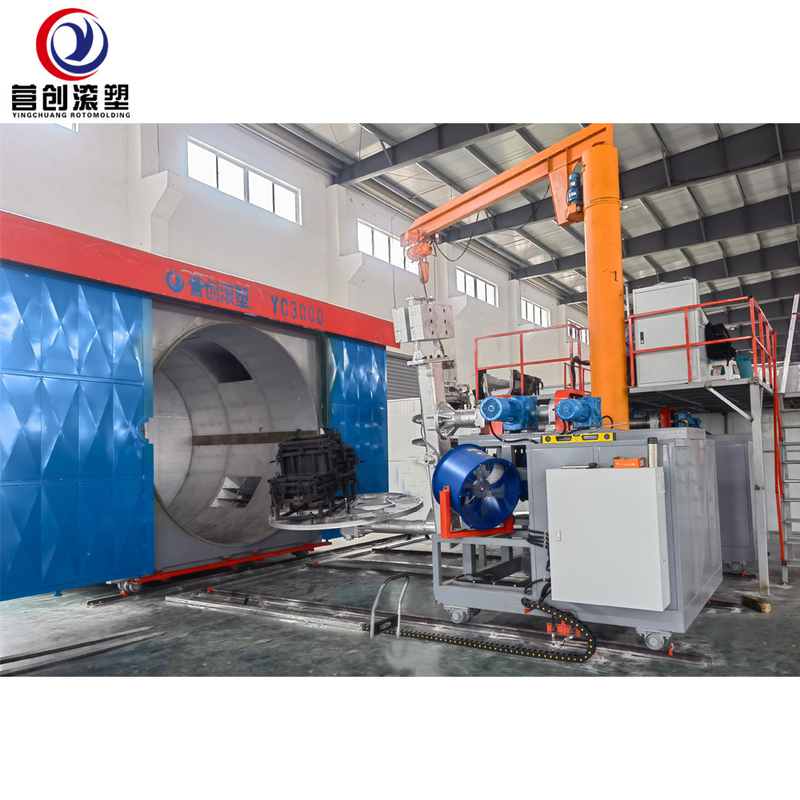

The oven used in Yingchuang Rotomolding Equipment Co., Ltd. has several advantageous features. To start, it utilizes new circular oven structure, which has high space utilization rate and saves energy. Additionally, the oven is divided into 4 to 6 units, using fabrication structure. To further maximize energy efficiency, the heating method used is hot gas passing, which heats up faster and with greater efficiency. As for the burner, it is imported from Italian Liya Road brand. Lastly, the control system works by using Siemens S7-1200 network cable communication to collect data, thereby reducing the need for conventional lines and further improving its appearance.
Yingchuang Rotomolding Equipment Co., Ltd. also offers personal customization and design according to the needs of customers, ensuring each customer is satisfied with the results. With all these features, customers can rest assure that the oven is both efficient and effective.



Technical Parameters:

FeatureAutomatic
Dimension(L*W*H)1700*1100*5300
Applicable IndustriesManufacturing Plant
Power49KW, 62KW, 63KW, 85KW
Warranty1 Year
Tank Volume2500L, 4500L, 7000L, 10000L, 14000L
MaterialPP/PE/HDPE/LLDPE
Voltage220V/380V/440V
Rotational Molding MachineYes
Rotational Molding EquipmentYes
Rotary Moulding MachineYes


Applications:

We provide a variety of different products, including water tanks, oil tanks, military boxes, lampshades, urea tanks, inspection wells, roadblocks, floats, auto parts, kayaks, boats, troughs, calf barns and septic tanks.
Our products are of the highest-quality, ensuring they are built to last. With modern manufacturing equipment and a skilled team of workers, our products offer an array of benefits, such as durability, reliability, and safety.
For more information about our products or any inquiries, please do not hesitate to contact us.



Customization:

  • Brand Name: Yingchuang
  • Place of Origin: Jiangsu, China
  • Certification: CE, ISO9001
  • Minimum Order Quantity: 1 Acre/Acres
  • Packaging Details: Wooden box
  • Delivery Time: 30 working days
  • Power: 49KW, 62KW, 63KW, 85KW
  • Applicable Industries: Manufacturing Plant
  • Warranty: 1 Year
  • Dimension(L*W*H): 1700*1100*5300
  • Material: PP/PE/HDPE/LLDPE
  • Custom Service: Biaxial rotational molding machine, rotational molding machine, biaxial rotational molding machine


Packing and Shipping:

Bi Axial Rotomoulding Machine Packaging and Shipping:
The Bi Axial Rotomoulding Machine will be securely packed in a wooden crate to ensure that it is delivered undamaged. The crate should be equipped with a minimum of four straps to ensure that the machine is secured during transportation. The crate should also include proper cushioning material to protect the machine from any impact during transportation. The customer should be provided with all the necessary information regarding the packaging, including the exact dimensions and weight of the package.
The Bi Axial Rotomoulding Machine should be shipped via a reliable courier service that provides tracking information. The customer should be provided with information regarding the estimated delivery date and tracking number. Any additional insurance should also be purchased for the shipment to ensure that the machine is adequately protected.
