| Brand Name: | YINGCHUANG |

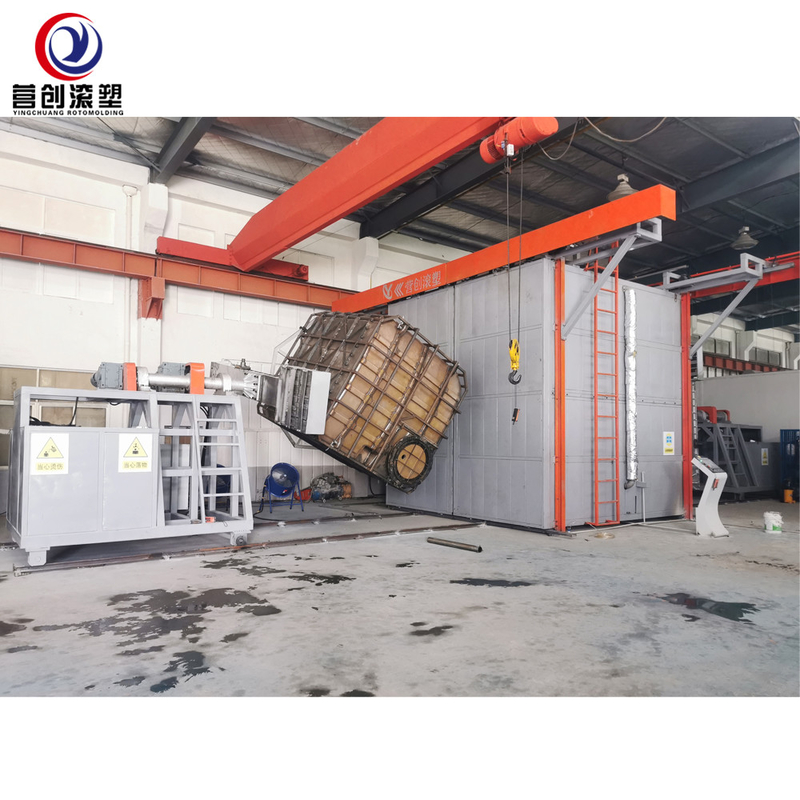

Our Shuttle machine is especially suitable for the production of large size products. Its versatility in producing different orders at the same time makes it an ideal choice for moulds needing to be changed throughout the production process or for different thicknesses of arms as well as for varying moulding times due to shape differences.
The machine provides a wide range of applications for the production of different rotational molding products such as Water Tank, Oil Tank, Military Box, Lampshade, Urea Tank, Inspection Well, Roadblocks, Float, Auto Parts, Kayak, Boat, Trough, Calf Barn and Septic Tanks.
It offers options of three kinds of work-arm: Straight-arm, L style offset arm and C style offset arm, together with three kinds of heating methods: natural gas, liquefied gas or diesel oil. The patented insulation heating chamber further helps reduce energy consumption and lowers the production cost.
This machine is designed to run each work-arm independently to reach the highest production efficiency. The interlock function ensures that the machine runs safely and stably. Temperature of the heating chamber can be monitored real-time, enabling quality control. The process formula can be saved, aiding production management and operation. It is equipped with a Siemens fully automatic PLC and a multiple-functional touch screen to make it easier to operate. Automatic inspection of breakdownsfacilitates maintenance and repairs and remote fault diagnoses are also available.
| Parameter | Value |
|---|---|
| Max Product Volume | 50000L |
| Voltage | 220V/380V/440V |
| Carriage | 2 |
| Cycle Time | 15-30min |
| PLC | Siemens |
| Control System | PLC |
| Max Product Weight | 500kg |
| Rotating Speed | 1-8rpm |
| Max Mold Weight | 1000kg |
| Total Power | 40kw |
The Shuttle Rotomolding Machine from YINGCHUANG is a rotational molding equipment designed to meet the most challenging production requirements. This rotary moulding machine is CE and ISO9001 certified and it is designed with a total power of 40kw and a cooling station of 1. It also has a maximum product volume of 50000L and its cycle time is 15-30min. The delivery time is 30-60 work days and the company can supply up to 3-5 machines per month. It is also equipped with 2 carriages for easy transportation. This top-of-the-line rotomolding equipment is suitable for a wide range of applications and it is guaranteed to provide reliable and efficient performance.
Brand Name: YINGCHUANG
Place of Origin: CHANGZHOU
Certification: CE, ISO9001
Delivery Time: 30--60 work days
Supply Ability: 3-5 machines per month
Carriage: 2
Burner capacity: 500000 Kcar
Operation Mode: Automatic
Cycle Time: 15-30min
Total Power: 40kw
We provide quality rotomolding equipment from YINGCHUANG, the leading rotational molding equipment supplier. Our custom shuttle rotomolding machine is certificated with CE and ISO9001. It has a carriage of 2 and a burner capacity of 500000 Kcar, with a total power of 40kw. The operation mode is automatic and cycle time is 15-30min. We can deliver within 30-60 work days and can supply up to 5 machines per month.
|
|
| Brand Name: | YINGCHUANG |
Our Shuttle machine is especially suitable for the production of large size products. Its versatility in producing different orders at the same time makes it an ideal choice for moulds needing to be changed throughout the production process or for different thicknesses of arms as well as for varying moulding times due to shape differences.
The machine provides a wide range of applications for the production of different rotational molding products such as Water Tank, Oil Tank, Military Box, Lampshade, Urea Tank, Inspection Well, Roadblocks, Float, Auto Parts, Kayak, Boat, Trough, Calf Barn and Septic Tanks.
It offers options of three kinds of work-arm: Straight-arm, L style offset arm and C style offset arm, together with three kinds of heating methods: natural gas, liquefied gas or diesel oil. The patented insulation heating chamber further helps reduce energy consumption and lowers the production cost.
This machine is designed to run each work-arm independently to reach the highest production efficiency. The interlock function ensures that the machine runs safely and stably. Temperature of the heating chamber can be monitored real-time, enabling quality control. The process formula can be saved, aiding production management and operation. It is equipped with a Siemens fully automatic PLC and a multiple-functional touch screen to make it easier to operate. Automatic inspection of breakdownsfacilitates maintenance and repairs and remote fault diagnoses are also available.
| Parameter | Value |
|---|---|
| Max Product Volume | 50000L |
| Voltage | 220V/380V/440V |
| Carriage | 2 |
| Cycle Time | 15-30min |
| PLC | Siemens |
| Control System | PLC |
| Max Product Weight | 500kg |
| Rotating Speed | 1-8rpm |
| Max Mold Weight | 1000kg |
| Total Power | 40kw |
The Shuttle Rotomolding Machine from YINGCHUANG is a rotational molding equipment designed to meet the most challenging production requirements. This rotary moulding machine is CE and ISO9001 certified and it is designed with a total power of 40kw and a cooling station of 1. It also has a maximum product volume of 50000L and its cycle time is 15-30min. The delivery time is 30-60 work days and the company can supply up to 3-5 machines per month. It is also equipped with 2 carriages for easy transportation. This top-of-the-line rotomolding equipment is suitable for a wide range of applications and it is guaranteed to provide reliable and efficient performance.
Brand Name: YINGCHUANG
Place of Origin: CHANGZHOU
Certification: CE, ISO9001
Delivery Time: 30--60 work days
Supply Ability: 3-5 machines per month
Carriage: 2
Burner capacity: 500000 Kcar
Operation Mode: Automatic
Cycle Time: 15-30min
Total Power: 40kw
We provide quality rotomolding equipment from YINGCHUANG, the leading rotational molding equipment supplier. Our custom shuttle rotomolding machine is certificated with CE and ISO9001. It has a carriage of 2 and a burner capacity of 500000 Kcar, with a total power of 40kw. The operation mode is automatic and cycle time is 15-30min. We can deliver within 30-60 work days and can supply up to 5 machines per month.
