| Brand Name: | yingchuang |
| Model Number: | YCA-3000 |
| MOQ: | 1 Acre/Acres |
| Price: | advisory service / Acres |
| Packaging Details: | Wooden box |

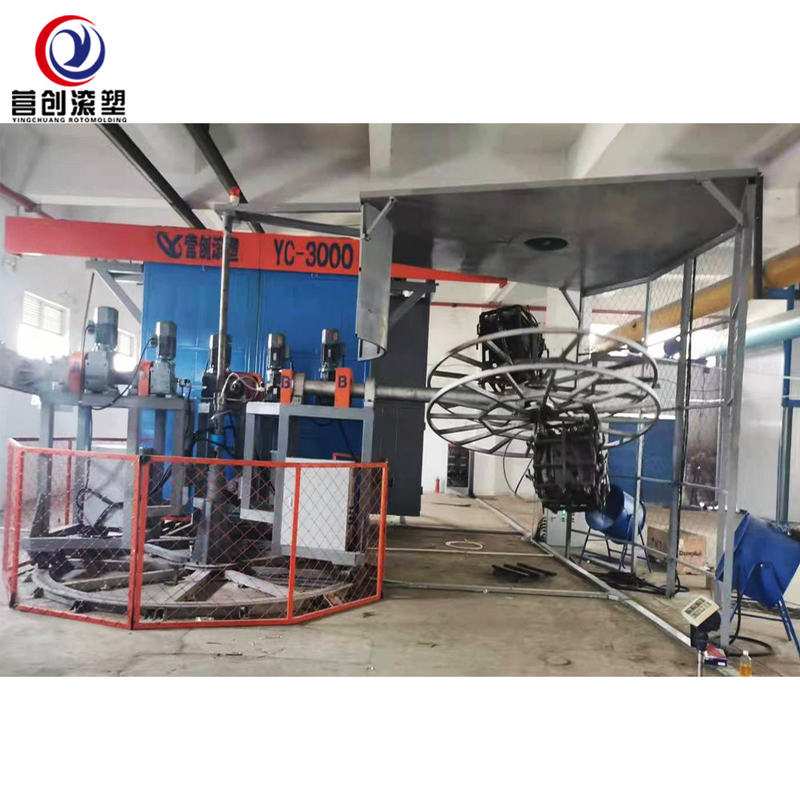

Fully Automatic Rotomolding Machine Rotomolding Mould Auxiliary Machinery
rotomolding machine advantage:
1. It only takes 3mins. from room temperature increase to 250 to 280 degree in oven
2. Arm is made of special alloy material which is good load
3. Full gear transmission, high efficiency
4. Full automatic operation
5. Heavy duty oven and energy saving
6. Loading and unloading easy for mould
7. Special deep cavity heating technical, suitable for complicated product
8. Internet remote control (if the machine has problem in your factory, we can solve the problem through internet)
9. PLC and Motors are Siemens brand from German,Burner is RIELLO from Italy,Bearing is NSK from Japan, all electrial compenents are using Schneider brand.
10. Big computer screen, bob-weight system, special made motor, thermostability sealing arm head etc
11. Use circle oven, it is more uniform heat distribution on the mold, that means it is good for product making and also more energy saving.
Specifications:
Model No |
Floor size | Biggesttank made |
|||
| L(m) | W(m) | H(m) | Operating platform | ||
| CC-3A-1000 | 6.5 | 5 | 2.3 | × | 150L |
| CC-3A-1600 | 9 | 7.5 | 3.1 | × | 500L |
| CC-3A-2000 | 10 | 8 | 3.6 | × | 1000L |
| CC-3A-2500 | 15 | 9 | 4.6 | √ | 2500L |
| CC-3A-3000 | 16 | 11 | 5 | √ | 4500L |
| CC-3A-3500 | 18 | 11 | 5.5 | √ | 7000L |
| CC-3A-4000 | 19.5 | 14 | 6.2 | √ | 10000L |
| CC-3A-4500 | 22 | 15 | 6.8 | √ | 14000L |
Model No |
Floor size | Biggesttank made |
|||
| L(m) | W(m) | H(m) | Operating platform | ||
| CC-4A-2000 | 11 | 9 | 3.8 | × | 1000L |
| CC-4A-2500 | 14 | 10 | 4.5 | √ | 2500L |
| CC-4A-3000 | 17 | 11 | 5.3 | √ | 4500L |
| CC-4A-3500 | 18 | 13 | 6 | √ | 7000L |
| CC-4A-4000 | 21 | 15 | 6.5 | √ | 10000L |
| CC-4A-4500 | 22.5 | 17 | 7 | √ | 14000L |
This equipment adopts Siemens 1200 control system. It analyses the temperature, arm, heating time and position of the equipment, adopts digital system analysis, prevents unnecessary loss caused by misoperation, and has alarm system, collects fault data of combustion system, temperature and time data, collects balance data of motor arm motor current system, manages data of cooling system and so on. . Modular control is adopted, each car, oven, cooling, equipped with an independent electrical system, reserved for adding station interface, man-machine operating system... The communication mode adopts the promotion of industry 4.0 in the 21st century, communication and stable communication signal. This method solves the problems caused by line failure, and equipped with remote terminal maintenance module, which is used for remote maintenance, maintenance and technical updating of equipment, improves the efficiency brought by after-sales and technical support, equipped with remote control, facilitates the disassembly and assembly of molds, and improves production efficiency.
More Details:
|
|
| Brand Name: | yingchuang |
| Model Number: | YCA-3000 |
| MOQ: | 1 Acre/Acres |
| Price: | advisory service / Acres |
| Packaging Details: | Wooden box |
Fully Automatic Rotomolding Machine Rotomolding Mould Auxiliary Machinery
rotomolding machine advantage:
1. It only takes 3mins. from room temperature increase to 250 to 280 degree in oven
2. Arm is made of special alloy material which is good load
3. Full gear transmission, high efficiency
4. Full automatic operation
5. Heavy duty oven and energy saving
6. Loading and unloading easy for mould
7. Special deep cavity heating technical, suitable for complicated product
8. Internet remote control (if the machine has problem in your factory, we can solve the problem through internet)
9. PLC and Motors are Siemens brand from German,Burner is RIELLO from Italy,Bearing is NSK from Japan, all electrial compenents are using Schneider brand.
10. Big computer screen, bob-weight system, special made motor, thermostability sealing arm head etc
11. Use circle oven, it is more uniform heat distribution on the mold, that means it is good for product making and also more energy saving.
Specifications:
Model No |
Floor size | Biggesttank made |
|||
| L(m) | W(m) | H(m) | Operating platform | ||
| CC-3A-1000 | 6.5 | 5 | 2.3 | × | 150L |
| CC-3A-1600 | 9 | 7.5 | 3.1 | × | 500L |
| CC-3A-2000 | 10 | 8 | 3.6 | × | 1000L |
| CC-3A-2500 | 15 | 9 | 4.6 | √ | 2500L |
| CC-3A-3000 | 16 | 11 | 5 | √ | 4500L |
| CC-3A-3500 | 18 | 11 | 5.5 | √ | 7000L |
| CC-3A-4000 | 19.5 | 14 | 6.2 | √ | 10000L |
| CC-3A-4500 | 22 | 15 | 6.8 | √ | 14000L |
Model No |
Floor size | Biggesttank made |
|||
| L(m) | W(m) | H(m) | Operating platform | ||
| CC-4A-2000 | 11 | 9 | 3.8 | × | 1000L |
| CC-4A-2500 | 14 | 10 | 4.5 | √ | 2500L |
| CC-4A-3000 | 17 | 11 | 5.3 | √ | 4500L |
| CC-4A-3500 | 18 | 13 | 6 | √ | 7000L |
| CC-4A-4000 | 21 | 15 | 6.5 | √ | 10000L |
| CC-4A-4500 | 22.5 | 17 | 7 | √ | 14000L |
This equipment adopts Siemens 1200 control system. It analyses the temperature, arm, heating time and position of the equipment, adopts digital system analysis, prevents unnecessary loss caused by misoperation, and has alarm system, collects fault data of combustion system, temperature and time data, collects balance data of motor arm motor current system, manages data of cooling system and so on. . Modular control is adopted, each car, oven, cooling, equipped with an independent electrical system, reserved for adding station interface, man-machine operating system... The communication mode adopts the promotion of industry 4.0 in the 21st century, communication and stable communication signal. This method solves the problems caused by line failure, and equipped with remote terminal maintenance module, which is used for remote maintenance, maintenance and technical updating of equipment, improves the efficiency brought by after-sales and technical support, equipped with remote control, facilitates the disassembly and assembly of molds, and improves production efficiency.
More Details:
