Carousel Rotational Molding Machine/Roto Moulding Machine For Mobile Toilet and other customized plastics

Carousel Rotational Molding Machine/Roto Moulding Machine For Mobile Toilet and other customized plastics

Thermoplastic Mobile Toilet Making machine

Carousel Mobile Toilet Making machine

thermoplastic Carousel Rotational Molding Machine

Place of Origin:

ChangZhou

Brand Name:

YingChuang Rotomoulding

Certification:

CE certification IS9001

Model Number:

CC-3A-3000

Contact Us

Request A Quote
Product Details
Application:
Manufacturing Plant
Condition:
New
Dimension(L*W*H):
Consultation Service
Certification:
CE Certification
After-sales Service:
Rovided: Video Technical Support, Free Spare Parts, Field Installation
Voltage:
220V/380V/440V
Name:
Rotational Molding Machine,2 Arms Multi-function Shuttle Rotomolding Plastic Machine
Power(w):
36Kw
Weight:
18t
Dimension(l*w*h):
16000mm*11000mm*5000mm
After-sales Service Provided:
Field Installation,Engineers Available To Service Machinery Overseas,Online Support,Video Technical Support
Processing Material:
PE Material
Type:
Fully Automatic
Product Description

Carousel Rotational Molding Machine Outdoor Portable Mobile Toilet Making Machine And Mould

What is the rotational molding machine

Rotational molding, also known as rotomolding, is a thermoplastic molding process best suited for large, one-piece hollow parts and double-walled open containers such as tanks, kayaks, and coolers. It’s most cost-effective for production volumes of less than 3,000 annually, making it ideal for inventors, start-ups, and small businesses.



Rotomolding is often used for parts that require high-quality finishes, uniform wall thicknesses, and high stability. Features such as inserts and spin weld attachments can be incorporated directly into the rotomold and foaming can be used to create thermal insulation and stiffness. Unlike competitive processes such as blow molding and thermoforming, rotomolding produces no pinch-off seams or weld lines, resulting in a finished product without the use of secondary processes.


Dimensions:


Model No
Floor Size Biggesttank made 详细安装尺寸见转臂
L(m) W(m) H(m) Operation platform
CC-3A-1000 6.5 5 2.3 × 150L
CC-3A-1600 9 7.5 3.1 × 170L
CC-3A-2000 10 8 3.6 × 1000L
CC-3A-2500 15 9 4.6 2500L
CC-3A-3000 16 11 5 4500L
CC-3A-3500 18 11 5.5 7000L

Basic processing steps are:

Charging the mold  Heating the mold Cooling Demoulding
Carousel Rotational Molding Machine/Roto Moulding Machine For Mobile Toilet and other customized plastics 0 Carousel Rotational Molding Machine/Roto Moulding Machine For Mobile Toilet and other customized plastics 1 Carousel Rotational Molding Machine/Roto Moulding Machine For Mobile Toilet and other customized plastics 2 Carousel Rotational Molding Machine/Roto Moulding Machine For Mobile Toilet and other customized plastics 3



The advantage of rotational molding



1. Suitable for the production of multi - variety and small - batch plastic products.

2. It's available to deal with a variety of surface patterns and produce products in various colors.

3. Suitable for forming all kinds of complex shapes of hollow parts.

4. The utilization of materials is extremely high, which is beneficial to save raw materials.

5. Rotational moulding products can be filled with foam material, to achieve thermal insulation.

6. No need to adjust the mould, the thickness of rotational moulding products can be adjusted.

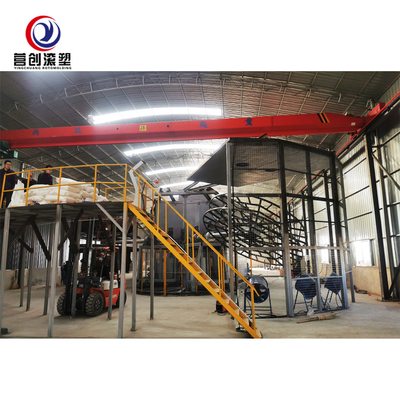

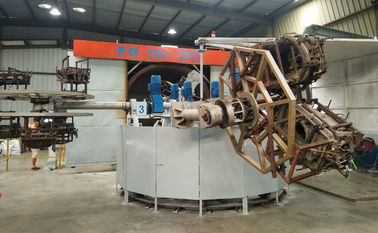

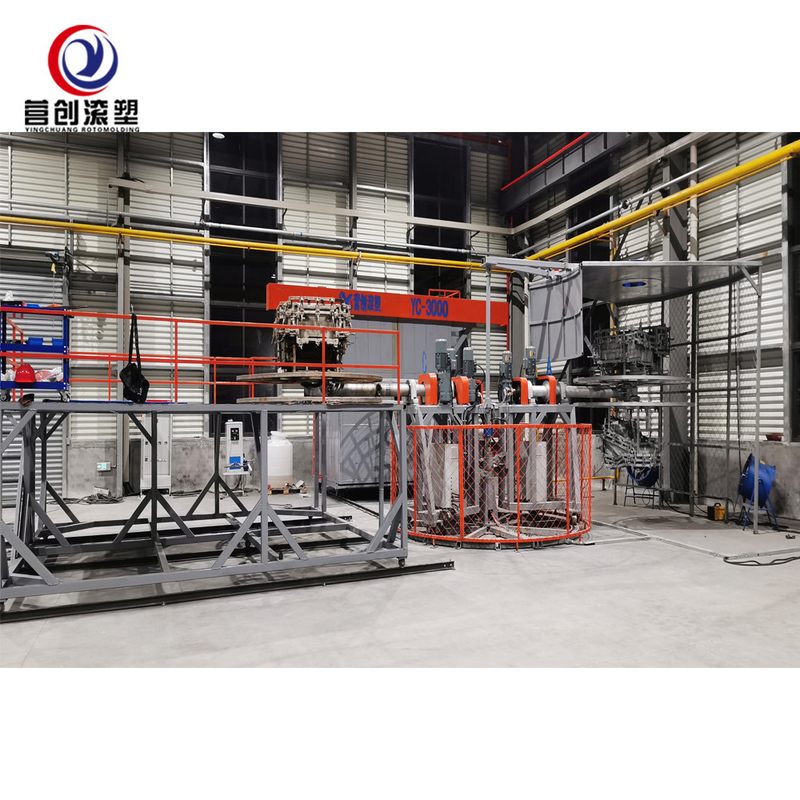

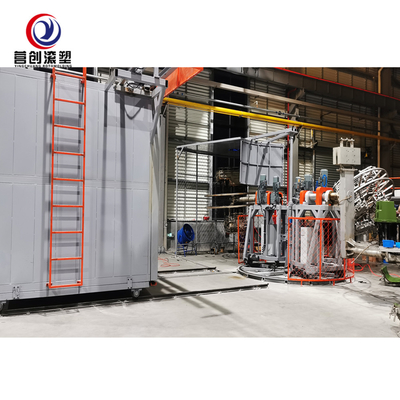

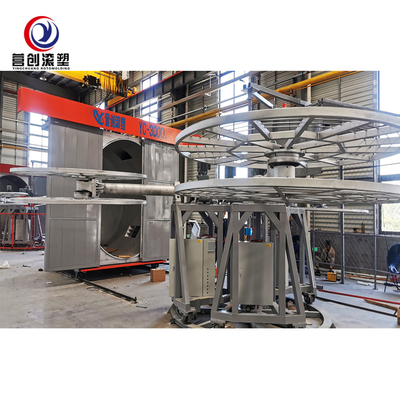

Photos for reference


Carousel Rotational Molding Machine/Roto Moulding Machine For Mobile Toilet and other customized plastics 4

Carousel Rotational Molding Machine/Roto Moulding Machine For Mobile Toilet and other customized plastics 5

Carousel Rotational Molding Machine/Roto Moulding Machine For Mobile Toilet and other customized plastics 6Carousel Rotational Molding Machine/Roto Moulding Machine For Mobile Toilet and other customized plastics 7Carousel Rotational Molding Machine/Roto Moulding Machine For Mobile Toilet and other customized plastics 8





FAQ



Q1:Are you a manufacturer or trading company?

A1:We are the manufacturer from changzhou,so we can offer the best quality and best price of the machine to you.



Q2:How can i pay to get Manufacturer directly sale rotomolfding machine two arms shuttle rotomoulding machine with CE certification ?

A2: 100% T/T,30% of pre-paid contracts entered into force, 70% paid before delivery.



Q3:Manufacturer directly sale rotomolfding machine two arms shuttle rotomoulding machine with CE certification is in stock or customized for me?

A3:Yingchuang Rotomolding Equipment Co., Ltd. accepts the personal customization and design of all customers, and determines the final needs of customers according to the needs of customers, so that customers are satisfied.



Q4:What is your item about the warranty and the maintenanc of Manufacturer directly sale rotomolfding machine two arms shuttle rotomoulding machine with CE certification ?

A4:One year warranty, lifetime maintenance



Q5:What is your production time and delivery time of IBC tank making water tank rotomolding production equipment machine tank rotomoulding machine ?

A5: Production time is 30-40 days after received your sample and deposit , delivery time is 5 days after received balance payment.



Q6:How can I install Manufacturer directly sale rotomolfding machine two arms shuttle rotomoulding machine with CE certification when it arrives?

A6:We will send the instruction book to you to let you install the machine.You can talk with our engineer by video chat or we will send the engineers overseas to help you.
