Shuttle Rotomolding Machine
>
Plastic Playground Slide Shuttle Rotomolding Machine Rotational Type

Plastic Playground Slide Shuttle Rotomolding Machine Rotational Type

Brand Name: YingChuang Rotomoulding
Model Number: CS-2A-4500
MOQ: 1
Price: coultation servicens
Packaging Details: Wooden box, wrapping film
Payment Terms: Western Union, L/C, T/T
Detail Information
Place of Origin:
ChangZhou
Certification:
CE certification
Application:
Manufacturing Plant
Condition:
New
Dimension(L*W*H):
Consultation Service
Certification:
CE Certification
After-sales Service:
Rovided: Video Technical Support, Free Spare Parts, Field Installation
Voltage:
380V/440V
Name:
Rotational Molding Machine,2 Arms Multi-function Shuttle Rotomolding Plastic Machine
Power(w):
59Kw
Supply Ability:
Can produce 3-4 machines per month
Highlight:

Plastic Slide shuttle rotomolding machine

,

Rotational shuttle rotomolding machine

,

Plastic Slide Rotational molding machine

Product Description

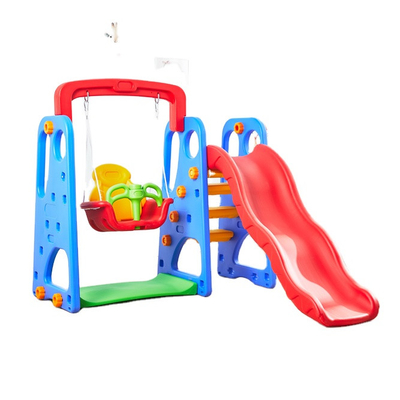

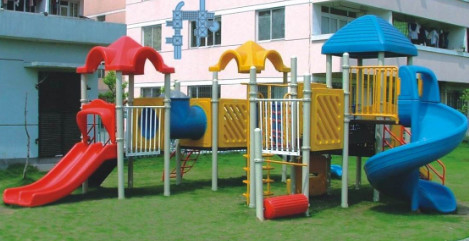

Plastic Kid Indoor Playground Slide Rotational Moulding Machines Children Fence making machine​

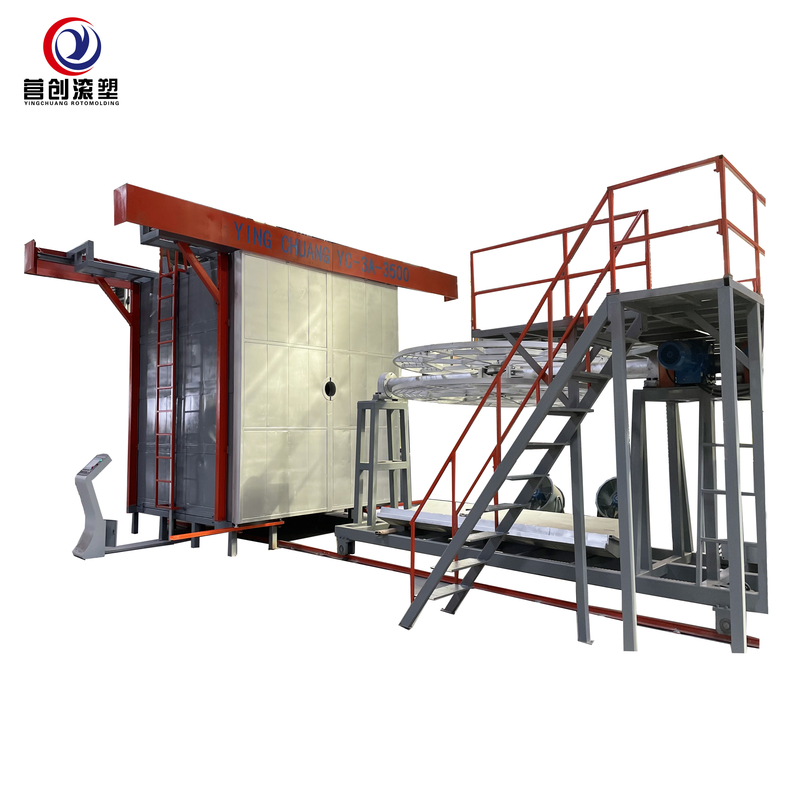

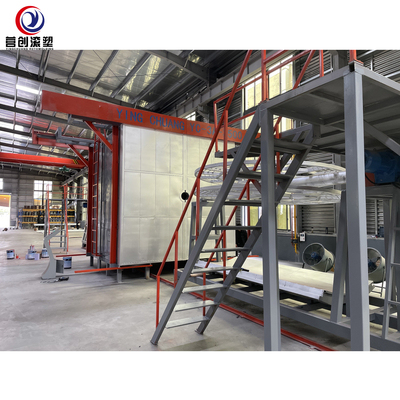

Yingchuang Shuttle Rotomolding Machine is suitable for large size products but no need mass quantity.

1. Application:Kid playground, Water Tank,Oil Tank,Cooler Box,Furniture,Urea Tank,Road blocks, Float,Auto Parts,
Kayak,Boat and so on.
2.3 Kinds of workarm for choice: Straight-arm,L style offset arm or C style offset arm to choose.
3.3 Kinds of heat source for choice:Natural Gas,Liquefied Gas or Diesel Oil.
4. High effective and thermal insulated of heating chamber to low energy consumption and save cost.
5.Real-time monitoring the temperature of heating chamber to bring high quality products.
6.Remote fault diagnosis can be realized.


Features:

1, the oven adopts a circular oven structure, the space utilization rate is high, and it is more energy-saving.

2, the oven uses a fabricated structure, an oven is divided into 4 or 5 and 6 pieces of assembly

3, the heating method adopts the principle of hot gas going up, heating faster, high efficiency, more energy saving

4, the burner is imported from the Italian Liya Road brand

5, control system Siemens S7-1200 network cable communication method to collect data, reduce the problem of conventional lines, the line laying more beautiful.



Dimensions


Model No
Floor Size Biggesttank made
L(m) W(m) H(m) Operation platform
CS-2A-1000 4 2.8 2 × 150L
CS-2A-1600 8 3.6 2.8 × 500L
CS-2A-2000 10 4.6 3.2 × 1000L
CS-2A-2500 12.5 6.2 4 2500L
CS-2A-3000 14 7 4.2 4500L
CS-2A-3500 16.5 8 4.5 7000L
CS-2A-4000 17.5 9 5.2 10000L
CS-2A-4500 19 10 5.9 14000L
CS-2A-5000 21 11 6.5 20000L
CS-2A-5500 23 12 7 25000L
CS-2A-6000 24.5 13 7.2 35000L
CS-2A-6500 27 15 8 40000L
CS-2A-7500 32 17 9.5 50000L


More Details

Plastic Playground Slide Shuttle Rotomolding Machine Rotational Type 0Plastic Playground Slide Shuttle Rotomolding Machine Rotational Type 1Plastic Playground Slide Shuttle Rotomolding Machine Rotational Type 2Plastic Playground Slide Shuttle Rotomolding Machine Rotational Type 3Plastic Playground Slide Shuttle Rotomolding Machine Rotational Type 4Plastic Playground Slide Shuttle Rotomolding Machine Rotational Type 5Plastic Playground Slide Shuttle Rotomolding Machine Rotational Type 6Plastic Playground Slide Shuttle Rotomolding Machine Rotational Type 7Plastic Playground Slide Shuttle Rotomolding Machine Rotational Type 8Plastic Playground Slide Shuttle Rotomolding Machine Rotational Type 9

FAQ

Q1:What’s your company’s main products?
Our company’s main products are rotomolding machine and mould.We make both aluminum and steel moulds.

Q2:How can I order your product?
Sign contract 一 prepayment一 confirm drawing一 production一 checking一 balance payment一 delivery

Q3:What’s your delivery date?
Mould:usually 30 days for one mould
Machine:usually 60 days

Q4:Can you design for us?
Yes,we can design according to your pictures,samples or simple drawings.If you have 3D drawing,we can also make as you required.

Q5:Is it possible to visit your factory?
Yes,we welcome your visit.You can fly to Changzhou/Shanghai airport or take a fast train to Changzhou station.

Q6:Do you have oversea service for your machine?
Yes,we can send 2-3 technicians to guide your installation.

Q7:Do you provide spare parts for your machine?
Yes,we will provide spare parts for our machine when loading.
