Two Arm Shuttle Rotomolding Machine For Slide Making

Two Arm Shuttle Rotomolding Machine For Slide Making

Two Arm Shuttle Rotomolding Machine

Slide Making Shuttle Rotomolding Machine

Two Arm Shuttle Rotomolding equipment

Place of Origin:

China,jiangsu

Brand Name:

yingchuang

Certification:

CE,ISO9001

Model Number:

YC-2A-3500

Contact Us

Request A Quote
Product Details
Keyword:
Shuttle Rotomolding Equipment
Operation:
Use Touching Screen
Arm:
Two Arm
Biggesttank Made:
2500L
Sturcture:
Circular Oven Structure
Material:
LLDPE, HDPE
Product Description

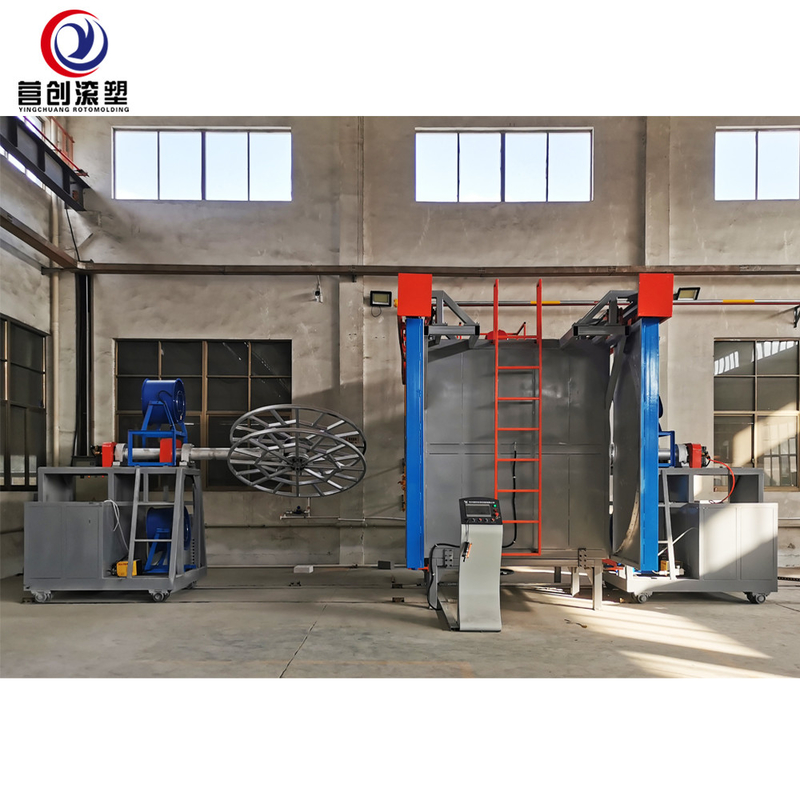

Two Arm Structure Shuttle Rotomolding Machine For Slide Making



Product Description



Rotomolding is often used for parts that require high-quality finishes, uniform wall thicknesses, and high stability. Features such as inserts and spin weld attachments can be incorporated directly into the rotomold and foaming can be used to create thermal insulation and stiffness. Unlike competitive processes such as blow molding and thermoforming, rotomolding produces no pinch-off seams or weld lines, resulting in a finished product without the use of secondary processes.



Parameter :


Model No
Floor Size Biggesttank made
L(m) W(m) H(m) Operation platform
CS-2A-1000 4 2.8 2 × 150L
CS-2A-1600 8 3.6 2.8 × 500L
CS-2A-2000 10 4.6 3.2 × 1000L
CS-2A-2500 12.5 6.2 4 2500L
CS-2A-3000 14 7 4.2 4500L
CS-2A-3500 16.5 8 4.5 7000L
CS-2A-4000 17.5 9 5.2 10000L
CS-2A-4500 19 10 5.9 14000L
CS-2A-5000 21 11 6.5 20000L
CS-2A-5500 23 12 7 25000L
CS-2A-6000 24.5 13 7.2 35000L
CS-2A-6500 27 15 8 40000L
CS-2A-7500 32 17 9.5 50000L

The rotational molding process is quite simple:


  1. A hollow mold is filled with powdered plastic resin.
  2. The mold begins rotating bi-axially and is transferred into an oven.
  3. The mold continues to rotate as the resin melts and coats the walls of the mold.
  4. The mold is cooled until the resin hardens into the desired shape.
  5. The rotation is stopped, and the mold is opened to remove the finished part.

Features:

1, the oven adopts a circular oven structure, the space utilization rate is high, and it is more energy-saving.

2, the oven uses a fabricated structure, an oven is divided into 4 or 5 and 6 pieces of assembly

3, the heating method adopts the principle of hot gas going up, heating faster, high efficiency, more energy saving

4, the burner is imported from the Italian Liya Road brand

5, control system Siemens S7-1200 network cable communication method to collect data, reduce the problem of conventional lines, the line laying more beautiful.

Detailed Images

 Two Arm Shuttle Rotomolding Machine  For Slide Making 0Two Arm Shuttle Rotomolding Machine  For Slide Making 1Two Arm Shuttle Rotomolding Machine  For Slide Making 2Two Arm Shuttle Rotomolding Machine  For Slide Making 3

rotational molding machine different arm for more products choice



rotational molding machine adopt siemens PLC touch screen control system , easy operate

Two Arm Shuttle Rotomolding Machine  For Slide Making 4Two Arm Shuttle Rotomolding Machine  For Slide Making 5

rotational molding machine heating system is equipped with 700,000 calories of imported Riyaway burner and thermal circulation system. The thermal circulation fan adopts high temperature resistant stainless steel centrifugal fan, which improves its service life.

Company Information

 Two Arm Shuttle Rotomolding Machine  For Slide Making 6Two Arm Shuttle Rotomolding Machine  For Slide Making 7Two Arm Shuttle Rotomolding Machine  For Slide Making 8Two Arm Shuttle Rotomolding Machine  For Slide Making 9



FAQ



Q1:Are you a manufacturer or trading company?

A1:We are the manufacturer from changzhou,so we can offer the best quality and best price of the machine to you.



Q2:How can i pay to get Hot sell kids playground slide rotomolding machine plastic product making machine  ?

A2: 100% T/T,30% of pre-paid contracts entered into force, 70% paid before delivery.



Q3:Widely used Hot sell kids playground slide rotomolding machine plastic product making machine is in stock or customized for me?

A3:Yingchuang Rotomolding Equipment Co., Ltd. accepts the personal customization and design of all customers, and determines the final needs of customers according to the needs of customers, so that customers are satisfied.



Q4:What is your item about the warranty and the maintenance of Hot sell kids playground slide rotomolding machine plastic product making machine ?

A4:One year warranty, lifetime maintenance



Q5:What is your production time and delivery time of Hot sell kids playground slide rotomolding machine plastic product making machine  ?

A5: Production time is 30-40 days after received your sample and deposit , delivery time is 5 days after received balance payment.



Q6:How can I install Hot sell kids playground slide rotomolding machine plastic product making machine when it arrives?

A6:We will send the instruction book to you to let you install the machine.You can talk with our engineer by video chat or we will send the engineers overseas to help you.
