New Design Gas Heating Shuttle Rotomolding Machine For Sales

New Design Gas Heating Shuttle Rotomolding Machine For Sales

gas heating Shuttle Rotomolding Machine

fabricated structure Shuttle Rotomolding Machine

gas heating tank molding machine

Place of Origin:

Jiangsu, China

Brand Name:

yingchuang

Certification:

CE,ISO9001

Model Number:

CS-2A-3000

Contact Us

Request A Quote
Product Details
Applicable Industries:
Manufacturing Plant
Power(W):
30KW
Weight:
Advisory Service
Warranty:
1 Year
After-sales Service Provided:
Video Technical Support, Free Spare Parts, Field Installation, Commissioning And Training, Field Maintenance And Repair Service, Online Support
Key Selling Points:
Automatic
Port:
ShangHai
Voltage:
220V/380V/440V
Control System:
Siemens
Name:
Rotomolding Machine
Product Description

Fabricated Structure Gas Heating Shuttle Rotomolding Machine


About shuttle rotomolding machine



Our Shuttle machine special suitable for production not mass quantity or large scale products; It is the best choice to produce different orders in the same time on the same machine; such like moulds needed to change during the process of production,or there are big difference thickness bring by the two arms, or the molding time difference because of the shape differences.

Application:Such like Water Tank,Oil Tank,Military Box, Lampshade, Urea Tank, Inspection Well, Roadblocks, Float, Auto Parts, Kayak, Boat, Trough, Calf Barn, Septic Tank and so on.

Assemble with Straight-arm,L style offset arm or C style offset arm to choose.

Heat Source: Natural Gas, Liquefied Gas or diesel oil.

High effective and thermal insulated of heating chamber low energy consumption.

Each work arm runs independently, non-interfering.

Interlock function to ensure safe and stable operation.

Real-time monitoring the temperature of heating chamber to bring high quality products.

Process formula can be storing,convenient for production management.

Touch interface with multiple functions is reasonable and easy to operate.

Breakdown self check,easier maintenance. Remote fault diagnosis can be realized.

Fully automatic PLC control system: Easy operation and also save both time and effort,

enhance productivity.



Equipment advantages


1, the oven adopts a circular oven structure, the space utilization rate is high, and it is more energy-saving.
2, the oven uses a fabricated structure, an oven is divided into 4 or 5 and 6 pieces of assembly
3, the heating method adopts the principle of hot gas going up, heating faster, high efficiency, more energy saving
4, the burner is imported from the Italian Liya Road brand
5, control system Siemens S7-1200 network cable communication method to collect data, reduce the problem of conventional lines, the line laying more beautiful
6, Yingchuang Rotomolding Equipment Co., Ltd. accepts the personal customization and design of all customers, and determines the final needs of customers according to the needs of customers, so that customers are satisfied, we can rest assured
7, 24 hours service call +8615967190727 (WhatsApp)



Specifications



Model No Floor Size Biggesttank made
L(m) W(m) H(m) Operation platform
CS-2A-1000 4 2.8 2 × 150L
CS-2A-1600 8 3.6 2.8 × 170L
CS-2A-2000 10 4.6 3.2 × 1000L
CS-2A-2500 12.5 6.2 4 2500L
CS-2A-3000 14 7 4.2 4500L
CS-2A-3500 15.5 8 4.5 7000L
CS-2A-4000 17.5 9 5.2 10000L
CS-2A-4500 19 10 5.9 14000L
CS-2A-5000 21 11 6.5 20000L
CS-2A-5500 23 12 7 25000L
CS-2A-6000 24.5 13 7.2 35000L
CS-2A-6500 27 15 9 40000L

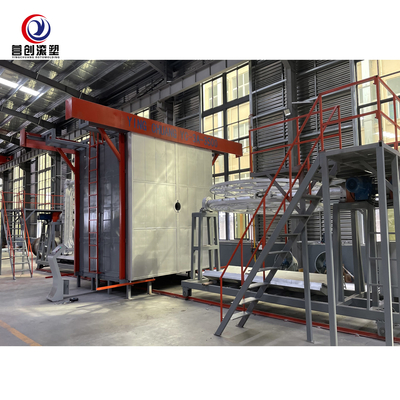

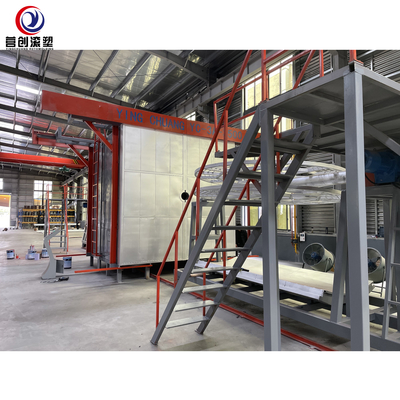

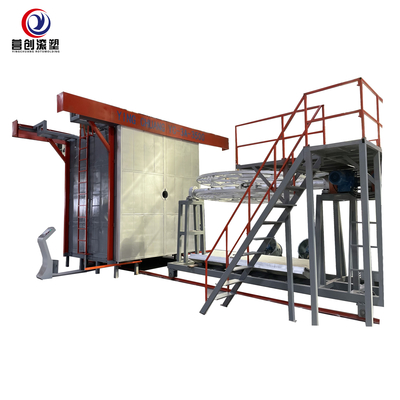

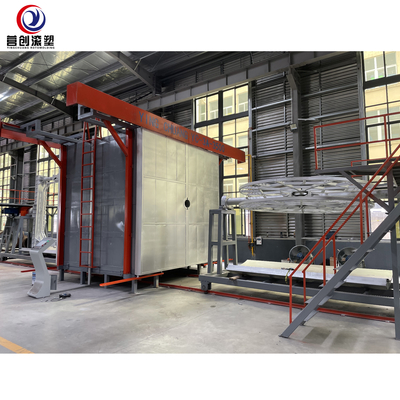

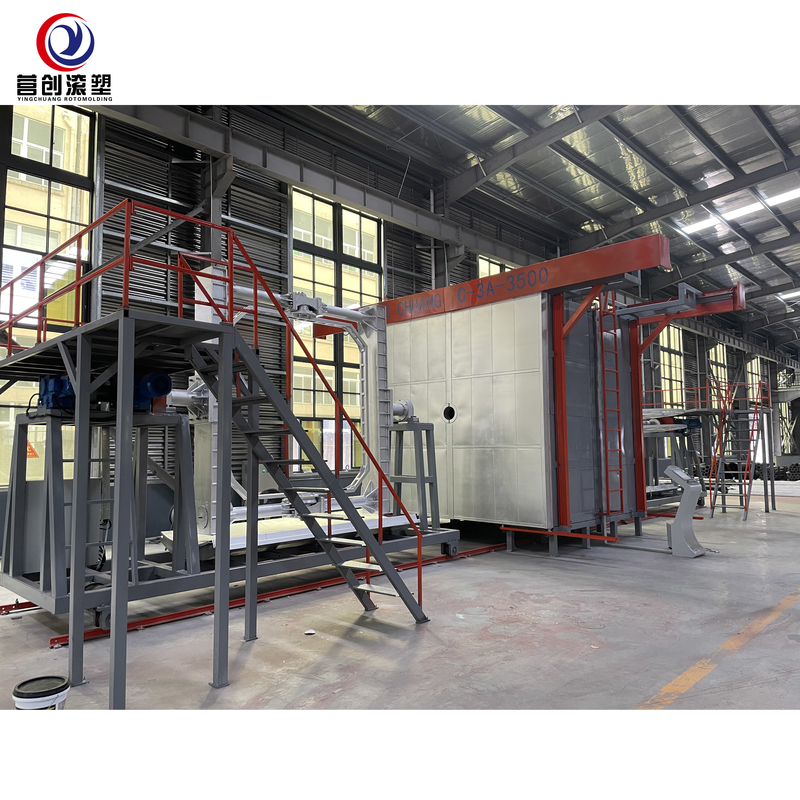

Photos for reference

New Design Gas Heating Shuttle Rotomolding Machine For Sales 0New Design Gas Heating Shuttle Rotomolding Machine For Sales 1New Design Gas Heating Shuttle Rotomolding Machine For Sales 2New Design Gas Heating Shuttle Rotomolding Machine For Sales 3New Design Gas Heating Shuttle Rotomolding Machine For Sales 4New Design Gas Heating Shuttle Rotomolding Machine For Sales 5New Design Gas Heating Shuttle Rotomolding Machine For Sales 6New Design Gas Heating Shuttle Rotomolding Machine For Sales 7New Design Gas Heating Shuttle Rotomolding Machine For Sales 8New Design Gas Heating Shuttle Rotomolding Machine For Sales 9









FAQ



1. How to choose suitable rotomolding machine?

---Reply: As the machine is custom-made, so we need to know which kind of product are you produced, and the largest product measurement, so we can decide the heating chamber size and recommend suitable machine for you.

2.How to choose a suitable type?

---Reply: We have different kinds of rotomolding machine, such as shuttle machine, carousel machine, rock n roll machine, Lab machine, etc. Our product detail model list can show the whole sizes which can be offered.

3. Are you a manufacturer?

---Reply: Yes, we have been in providing profession solution in rotomolding field for over 6 years. We have our own factory workshop.

4. Before make the order ,can I visit your factory?

---Reply: Yes,of course, warmly welcome. Before you come here, please send us your schedule and your arrival time, so that we can come to pick you up.

5. What is your worktime?

---Reply: All the time, any request shall be replied within 24 hours.

6.What about the delivery time?

---Reply: As machine is customized, so we need 40 to 90 days to produce new machine for delivery, it depends on machine type.
