80mm Screw Multi Arm Polycarbonate Water Tank Making Machine

80mm Screw Multi Arm Polycarbonate Water Tank Making Machine

80mm screw Water Tank Making Machine

polycarbonate Water Tank Making Machine

polycarbonate plastic tank manufacturing machine

Place of Origin:

Jiangsu, China

Brand Name:

yingchuang

Certification:

CE, ISO9001

Model Number:

YCB-3500

Contact Us

Request A Quote
Product Details
Applicable Industries:
Manufacturing Plant
Condition:
New
Voltage:
220V,380V ,440V
Power(W):
62KW
Weight:
Advisory Service
Warranty:
1 Year
After-sales Service Provided:
Video Technical Support, Free Spare Parts, Field Installation, Commissioning And Training, Field Maintenance And Repair Service, Online Support
Port:
ShangHai
Product Description

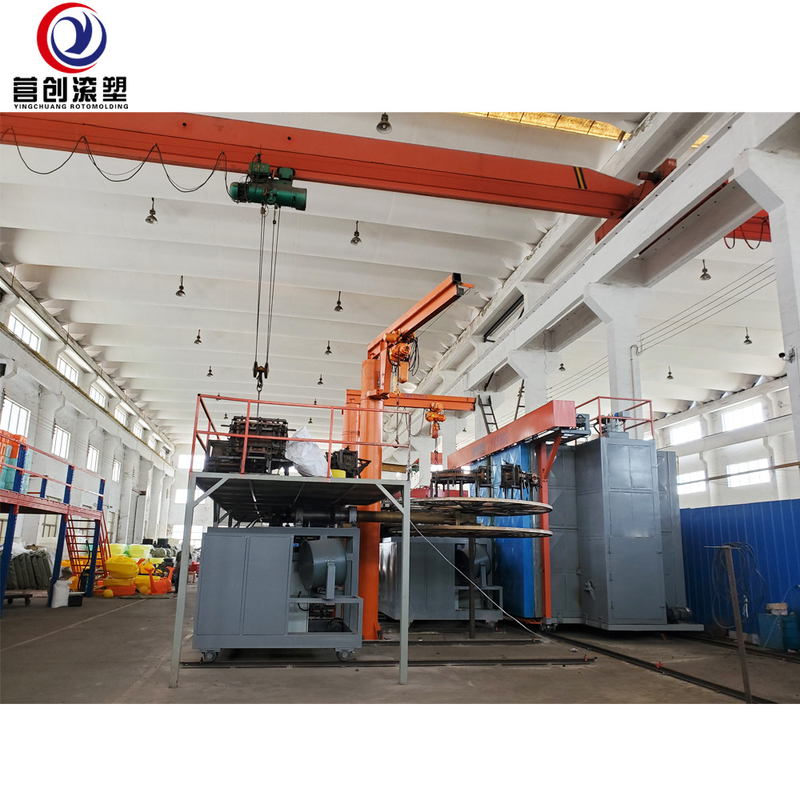

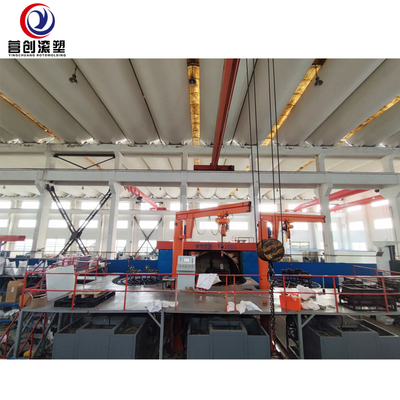

Multi-Arm Shuttle rotational molding machine For plastic water tank



Equipment advantages:



1, the oven adopts a circular oven structure, the space utilization rate is high, and it is more energy-saving.

2, the oven uses a fabricated structure, an oven is divided into 4 or 5 and 6 pieces of assembly

3, the heating method adopts the principle of hot gas going up, heating faster, high efficiency, more energy saving

4, the burner is imported from the Italian Liya Road brand

5, control system Siemens S7-1200 network cable communication method to collect data, reduce the problem of conventional lines, the line laying more beautiful

6, Yingchuang Rotomolding Equipment Co., Ltd. accepts the personal customization and design of all customers, and determines the final needs of customers according to the needs of customers, so that customers are satisfied, we can rest assured

7, 24 hours service call +8615967190727 (WhatsApp)




Model No
 Floor size
Biggesttank made
L(m) W(m) H(m) Operating platform
CS-3A-2500 12 8.3 4 2500L
CS-3A-3000 14 9.3 4.5 4500L
CS-3A-3500 16 10.3 5 7000L
CS-3A-4000 18 11.3 5.5 10000L
CS-3A-4500 20 12.3 6 14000L






Model No
 Floor size
Biggesttank made
L(m) W(m) H(m) Operating platform
CS-4A-2500 15 8.3 4 2500L
CS-4A-3000 17.5 9.3 4.5 4500L
CS-4A-3500 20 10.3 5 7000L
CS-4A-4000 22.5 11.3 5.5 10000L
CS-4A-4500 25 12.3 6 14000L

80mm Screw Multi Arm Polycarbonate  Water Tank Making Machine 080mm Screw Multi Arm Polycarbonate  Water Tank Making Machine 180mm Screw Multi Arm Polycarbonate  Water Tank Making Machine 280mm Screw Multi Arm Polycarbonate  Water Tank Making Machine 380mm Screw Multi Arm Polycarbonate  Water Tank Making Machine 480mm Screw Multi Arm Polycarbonate  Water Tank Making Machine 5
