Place of Origin:
ChangZhou
Brand Name:
YingChuang Rotomoulding
Certification:
CE certification
Model Number:
YC-2A-2500
Contact Us

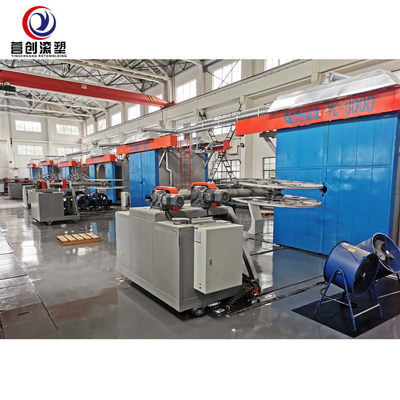

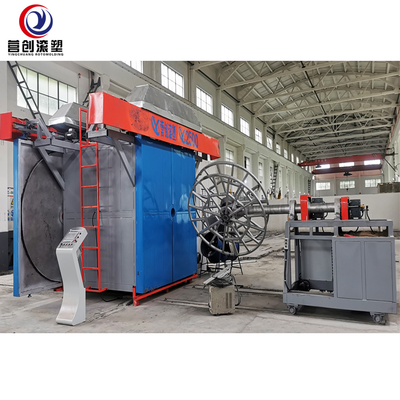

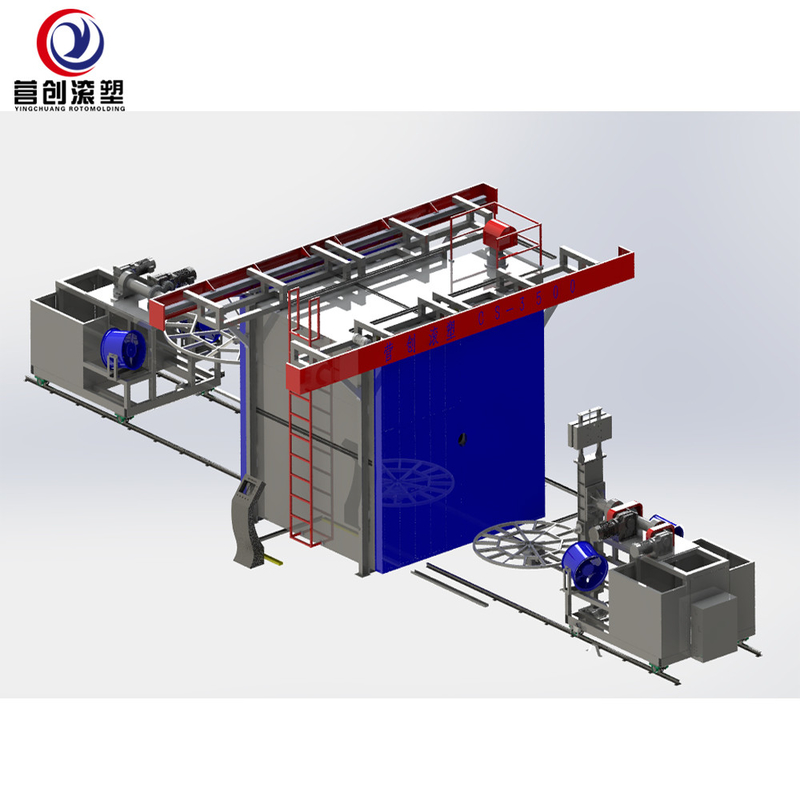

Furniture Bar Chair Plastic Water Tank Roto Machines Rotomolding Machine
* Wide application:all kinds of rotational molding products,such as Water Tank,Oil Tank,Military Box,Lampshade,Urea Tank,Inspection Well,Roadblocks,Float,Auto Parts,Kayak,Boat,Trough and so on.
* 3 kinds of work-arm for choice:Straight-arm,L style offset arm or C style offset arm.
* 3 kinds of heating methods for choice:natural gas,liquefied gas or diesel oil.
* Patented insulation heating chamber,effectively reduce energy consumption to lower production cost.
* Each work-arm runs independently,to reach the highest production efficiency.
* Interlock function,to ensure the machine running with safety and stability.
* Real-time monitoring the temperature of heating chamber,to ensure quality control.
* Process formula can be stored,convenient for production management.
* Siemens fully automatic PLC and multiple functions Touch screen,to make machine easily operate.
* Auto inspection of breakdown,to make maintenance and repair easier.
* Remote fault diagnosis is available.Parts,Kayak,Boat, Trough,Calf Barn,and Septic Tank and so on.
Model No |
Floor size | Biggesttank made |
|||
| L(m) | W(m) | H(m) | Operating platform | ||
| CS-2A-1000 | 4 | 2.8 | 2 | × | 150L |
| CS-2A-1600 | 8 | 3.6 | 2.8 | × | 500L |
| CS-2A-2000 | 10 | 4.6 | 3.2 | × | 1000L |
| CS-2A-2500 | 12.5 | 6.2 | 4 | √ | 2500L |
| CS-2A-3000 | 14 | 7 | 4.2 | √ | 4500L |
| CS-2A-3500 | 15.5 | 8 | 4.5 | √ | 7000L |
| CS-2A-4000 | 17.5 | 9 | 5.2 | √ | 10000L |
| CS-2A-4500 | 19 | 10 | 5.9 | √ | 14000L |
| CS-2A-5000 | 21 | 11 | 6.5 | √ | 20000L |
| CS-2A-5500 | 23 | 12 | 7 | √ | 25000L |
| CS-2A-6000 | 24.5 | 13 | 7.2 | √ | 35000L |
| CS-2A-6500 | 27 | 15 | 9 | √ | 40000L |
| CS-2A-7500 | 32 | 17 | 9.5 | √ | 50000L |
