Shuttle Rotomolding Machine
>
220V 380V 440V Rotary Moulding Machine for Water Tank Plastic Products

220V 380V 440V Rotary Moulding Machine for Water Tank Plastic Products

Brand Name: YingChuang Rotomoulding
Model Number: YC-1A-2000
MOQ: 1
Price: coultation servicens
Packaging Details: Wooden box, packaging cotton
Detail Information
Place of Origin:
ChangZhou
Certification:
CE certification
Application:
Manufacturing Plant
Condition:
New
Dimension(L*W*H):
Consultation Service
Certification:
CE Certification
After-sales Service:
Rovided: Video Technical Support, Free Spare Parts, Field Installation
Voltage:
220V/380V/440V
Name:
Shuttle Rotomolding Machine
Power(w):
11Kw
Supply Ability:
Can produce 3-4 machines per month
Highlight:

rotary molding machine

,

ferry rotomolding machines

,

440V Rotary Moulding Machine

Product Description

Water Tank Plastic Products Independeng-arm Rotational Moulding Machine



One-Equipment structure

The shuttle rotomolding machine consists of two moving reels and one oven

Tow-Equipment principle

The oven adopts the principle of hot gas upwards, and the oven can be heated by three kinds of heating materials: liquefied gas, natural gas and diesel.

High efficiency and energy saving heat cycle oven.high space utilization rate of oven, fast heating speed of mould, adjustable speed of heat cycle, automatic positioning heating system, heat balance, uniform thickness of product forming wall.




Model No
Floor Size Biggesttank made
L(m) W(m) H(m) Operation platform
CS-2A-1000 4 2.8 2 × 150L
CS-2A-1600 8 3.6 2.8 × 500L
CS-2A-2000 10 4.6 3.2 × 1000L
CS-2A-2500 12.5 6.2 4 2500L
CS-2A-3000 14 7 4.2 4500L
CS-2A-3500 16.5 8 4.5 7000L
CS-2A-4000 17.5 9 5.2 10000L
CS-2A-4500 19 10 5.9 14000L
CS-2A-5000 21 11 6.5 20000L
CS-2A-5500 23 12 7 25000L
CS-2A-6000 24.5 13 7.2 35000L
CS-2A-6500 27 15 8 40000L
CS-2A-7500 32 17 9.5 50000L

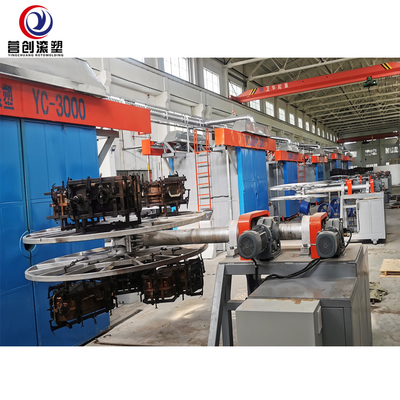

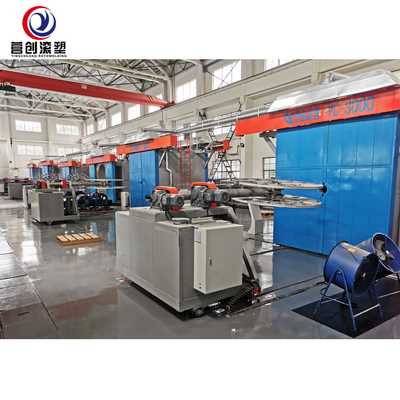

The shuttles are linear installations featuring a central oven and 1 or 2 carriages which, on request, are entered into the oven for cooking and then removed to a cooling station for cooling and extraction of the moulded parts. These installations require only limited operating space while providing increased loading capacity from the mould-holding arms which are supported at the two ends.



Oven having a unique shape to reduce the air volume around the moulds to the minimum and to achieve high efficiency with low energy consumption. Oven structure in robust steel profiles, with high thermal insulation attained through interposition of high density rock wool fibers.



The most economical way of exploiting all the advantages offered by this technology. Specifications:

  • 2 - 3 stations: an oven and 1 or 2 cooling and loading/unloading stations;
  • Open cooling stations with ground level fans;
  • High capacity loading carriages;
  • Interchangeable straight or crank arms;
  • Burner powered with different fuels;
  • PLC control system.

220V 380V 440V Rotary Moulding Machine for Water Tank Plastic Products 0220V 380V 440V Rotary Moulding Machine for Water Tank Plastic Products 1220V 380V 440V Rotary Moulding Machine for Water Tank Plastic Products 2220V 380V 440V Rotary Moulding Machine for Water Tank Plastic Products 3220V 380V 440V Rotary Moulding Machine for Water Tank Plastic Products 4220V 380V 440V Rotary Moulding Machine for Water Tank Plastic Products 5220V 380V 440V Rotary Moulding Machine for Water Tank Plastic Products 6220V 380V 440V Rotary Moulding Machine for Water Tank Plastic Products 7220V 380V 440V Rotary Moulding Machine for Water Tank Plastic Products 8220V 380V 440V Rotary Moulding Machine for Water Tank Plastic Products 9
