Plastic Pulverizer Auxiliary Equipment Final Size Or Mesh Demands 200kg/h

Plastic Pulverizer Auxiliary Equipment Final Size Or Mesh Demands 200kg/h

industrial plastic grinder

plastic mixer machine

Place of Origin:

Jiangsu, China

Brand Name:

yingchuang

Certification:

CE,ISO9001

Model Number:

MF-500

Contact Us

Request A Quote
Product Details
Condition:
New
Voltage:
220V,380V ,440V
Power(W):
45KW
Warranty:
1 Year
After-sales Service Provided:
Video Technical Support, Free Spare Parts, Field Installation, Commissioning And Training, Field Maintenance And Repair Service, Online Support
Key Selling Points:
Multifunctional
Port:
ShangHai
Product Description

LLDPE Plastic Pulverizer Machine For Rotomolding Products, Etc.





.MF500 LLDPE Pulverizer Machine



Item Description Specification
Machine specification
NO Model MF-500
1 Outer diameter of cutter head 500mm
2 Motor power 45kw
3 Bearing SKF
4 Capacity 200kg/h,for the LLDPE,based on the material
5 Types of Raw material LLDPE
6 Blade material SKD-11 (very hardness)
7 Blade tooth quantity 680pcs
8 Life of milling disc blade Around 600ton
9 Rotating speed 3108 rpm
10 Size of processed powder 20-80mesh,based on requirements
11 Volume of feeding hopper 500liter
12 Cooling mode Water cooling
13 Air tube Double layer with water jacket for cooling
14 Vibration sieve ZD800
15 Vibration sieve motor 0.75kw
16 Dust collector with 9 cloth bags, Fabric bag which is easy to clean
17 Air blower 4kw
18 Cooling riser 1 root Pipe diameter of 190 mm
19 Weight 2100kg
20 Dimension(L×W×H) 2000*1700*3800mm
21 Cyclone device 1 set
22 Dust-cleaning apparatus 1 set
Electric components
1 Contactor Schneider brand
2 Relay Schneider brand
3 Power breaker Schneider brand
4 All the other electric components with famous brand

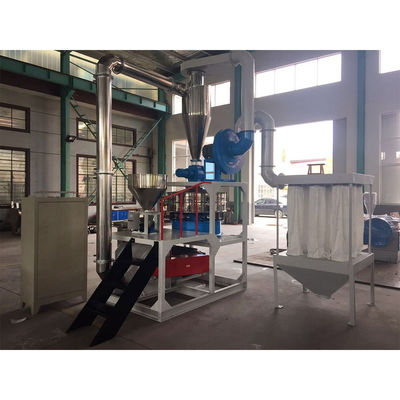

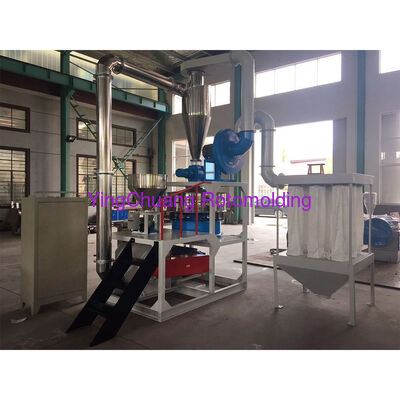

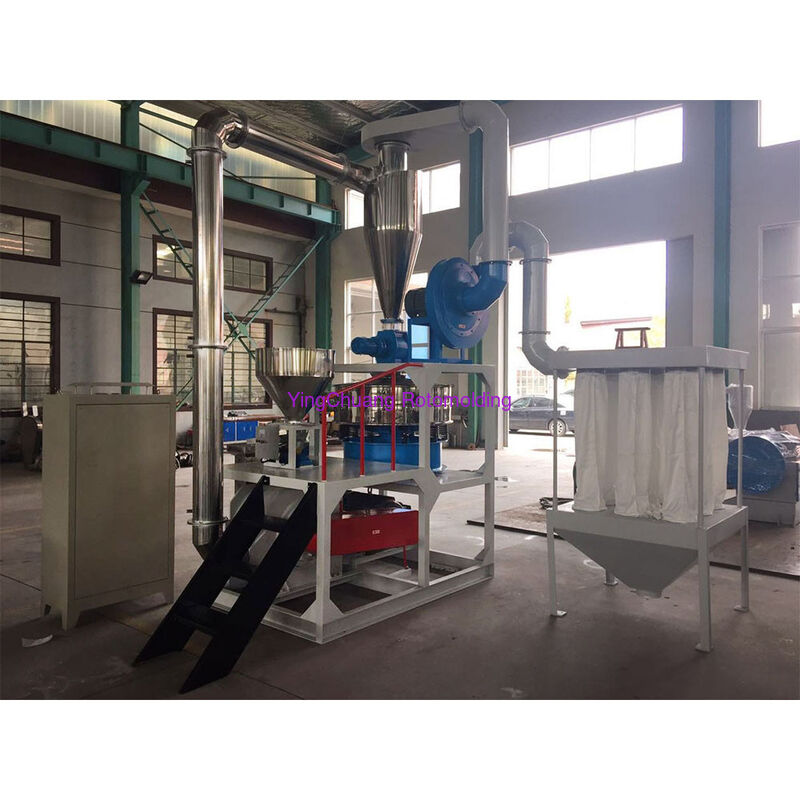

Plastic Pulverizer Auxiliary Equipment Final Size Or Mesh Demands 200kg/h 0







1. Milling room

2. Main motor

3. Air pipe

4. Hopper/ loader

5. Vibrating material feeding

6. Vibrating sieve

7. Cyclone butterfly valve

8. Cyclone separator

9. Air blower

10. Control cabinet

11. Dust collector
