Bi Axial Rotomoulding Machine
>

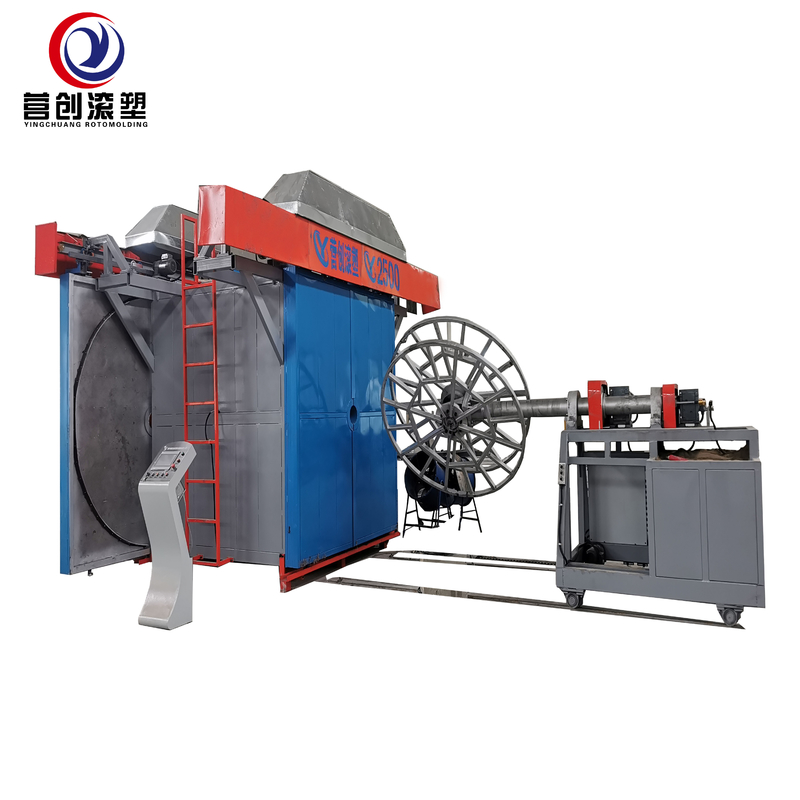

Septic Tank Bi Axial Rotomoulding Machine / 63KW Rotomolding Equipment

Septic Tank Bi Axial Rotomoulding Machine / 63KW Rotomolding Equipment

Brand Name: yingchuang
Model Number: YCB-3500
MOQ: 1 Acre/Acres
Price: advisory service / Acres
Packaging Details: Wooden box
Detail Information
Place of Origin:
Jiangsu, China
Certification:
CE, ISO9001
Applicable Industries:
Manufacturing Plant
Voltage:
220V/380V/440V
Power(W):
63KW
Weight:
Advisory Service
Warranty:
1 Year
After-sales Service Provided:
Video Technical Support, Free Spare Parts, Field Installation, Commissioning And Training, Field Maintenance And Repair Service, Online Support
Key Selling Points:
Automatic
Port:
ShangHai
Name:
Rotational Molding Machine,2 Arms Multi-function Shuttle Rotomolding Plastic Machine
Supply Ability:
Can produce 3-5 machines per month
Highlight:

biaxial rotational molding machine

,

rotomolding equipment

Product Description

Septic tank plastic manufacturing machinery, rotomolding machine




Model No
Floor size
Biggesttank made
L(m) W(m) H(m) Operating platform
CS-3A-2500 15 9 4.6 2500L
CS-3A-3000 16 11 5 4500L
CS-3A-3500 18 11 5.5 7000L
CS-3A-4000 19.5 14 6.2 10000L
CS-3A-4500 22 15 6.8 14000L






Model No
 Floor size
Biggesttank made
L(m) W(m) H(m) Operating platform
CS-4A-2500 14 10 4.5 2500L
CS-4A-3000 17 11 5.3 4500L
CS-4A-3500 18 13 6 7000L
CS-4A-4000 21 15 6.5 10000L
CS-4A-4500 22.5 17 7 14000L



MACHINES, MOLDS, MATERIALS



The principle of rotational molding of plastics isn’t complicated. Basically the process consists of introducing a known amount of plastic in powder, granular, or viscous liquid form into a hollow, shell-like mold, and then rotating that tool biaxially in an oven until the resin melts and coats the inside of the mold cavity. The tool is then cooled, and the part is removed from the mold. And that’s it. If you’re counting on your fingers, that’s a mere four steps: mold charging, mold heating, mold cooling, and part removal.

The equipment is a bit more complicated, and rotational molding machines themselves are made in a wide range of sizes. Rotomolding units normally consist of molds, an oven, a cooling chamber, and mold spindles. The spindles are mounted on an arm biaxially rotating the mold or molds, which provides a uniform coating of the plastic inside each mold as it’s heated. There are two types of turret rotational molding machines commonly used: independent-arm and fixed-arm. In fixed-arm turret machines, all of the arms — typically three — index at the same time. This requires that heating, cooling, and servicing operations must be done at the same length of time for each arm. Independent-arm machines, by contrast, provide process flexibility by allowing one arm to index while the other arms can remain stationary.
