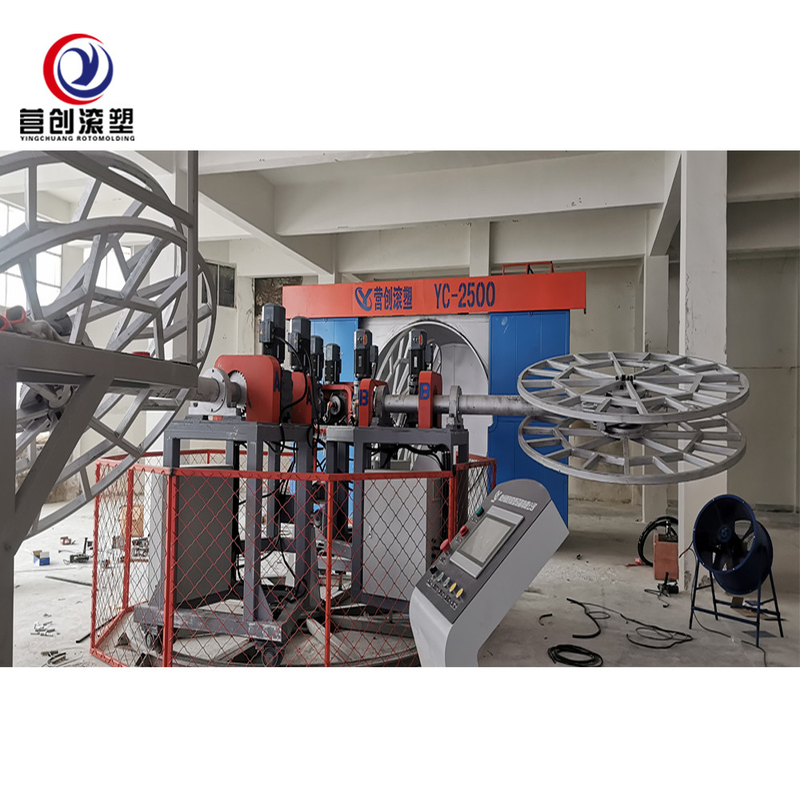

62KW Rotary Moulding Machine Multi Functional Automatic CE Certificated

62KW Rotary Moulding Machine Multi Functional Automatic CE Certificated

rotomolding equipment

plastic water tank making machine

Place of Origin:

Jiangsu, China

Brand Name:

yingchuang

Certification:

CE,ISO9001

Model Number:

YC-3A-3500

Contact Us

Request A Quote
Product Details
Applicable Industries:
Manufacturing Plant
Condition:
New
Voltage:
220V,380V ,440V
Power(W):
62KW
Dimension(L*W*H):
Advisory Service
Weight:
28T
Warranty:
1 Year
After-sales Service Provided:
Video Technical Support, Free Spare Parts, Field Installation, Commissioning And Training, Field Maintenance And Repair Service, Online Support
Key Selling Points:
Multifunctional
Port:
ShangHai
Product Description

CE Certificated multy function automatical Rotational Molding Machine








Model No
Floor Size Biggesttank made
L(m) W(m) H(m) Operation platform
CC-3A-1000 6.5 5 2.3 × 150L
CC-3A-1600 9 7.5 3.1 × 500L
CC-3A-2000 10 8 3.6 × 1000L
CC-3A-2500 15 9 4.6 2500L
CC-3A-3000 16 11 5 4500L
CC-3A-3500 18 11 5.5 7000L
CC-3A-4000 19.5 14 6.2 10000L
CC-3A-4500 22 15 6.8 14000L






Model No
Floor size Biggesttank made
L(m) W(m) H(m) Operation platform
CC-4A-2000 11 9 3.8 × 1000L
CC-4A-2500 14 10 4.5 2500L
CC-4A-3000 17 11 5.3 4500L
CC-4A-3500 18 13 6 7000L
CC-4A-4000 21 15 6.5 10000L
CC-4A-4500 22.5 17 7 14000L



Our Shuttle machine especially suitable for produce large size products;It is the best choice to produce different orders in the same time on the same macine;such like moulds needed to change during the process of production,or there are big difference thickness bring by the two arms,or the molding time difference because of the shape differences.



* Wide application:all kinds of rotational molding products,such as Water Tank,Oil Tank,Military Box,Lampshade,Urea Tank,Inspection Well,Roadblocks,Float,Auto Parts,Kayak,Boat,Trough and so on.

* 3 kinds of work-arm for choice:Straight-arm,L style offset arm or C style offset arm.

* 3 kinds of heating methods for choice:natural gas,liquefied gas or diesel oil.

* Patented insulation heating chamber,effectively reduce energy consumption to lower production cost.

* Each work-arm runs independently,to reach the highest production efficiency.

* Interlock function,to ensure the machine running with safety and stability.

* Real-time monitoring the temperature of heating chamber,to ensure quality control.

* Process formula can be stored,convenient for production management.

* Siemens fully automatic PLC and multiple functions Touch screen,to make machine easily operate.

* Auto inspection of breakdown,to make maintenance and repair easier.

* Remote fault diagnosis is available.Parts,Kayak,Boat, Trough,Calf Barn,and Septic Tank and so on.
