| Brand Name: | yingchuang |
| Model Number: | YCA-3000 |
| MOQ: | 1 Acre/Acres |
| Price: | advisory service / Acres |
| Packaging Details: | Wooden box |

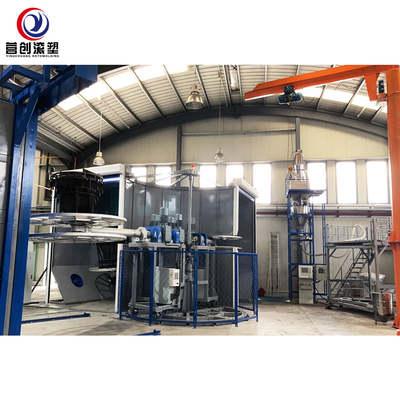

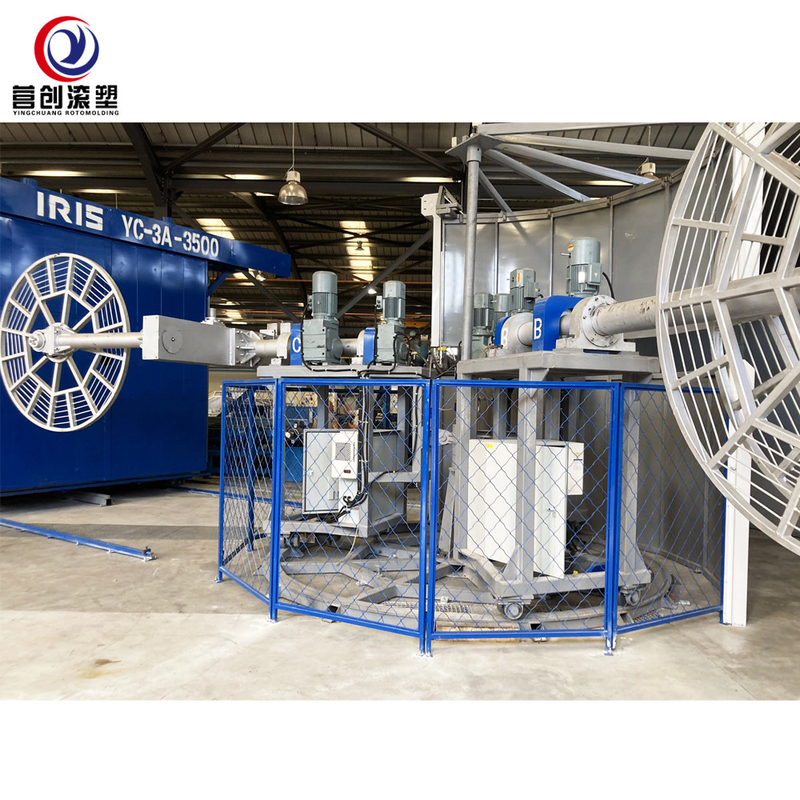

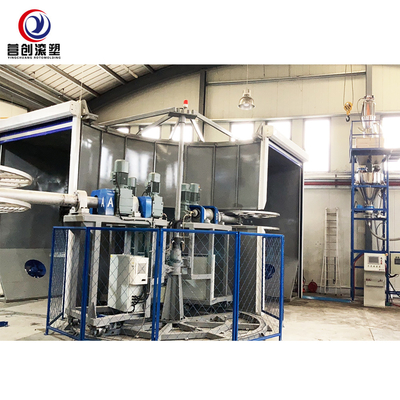

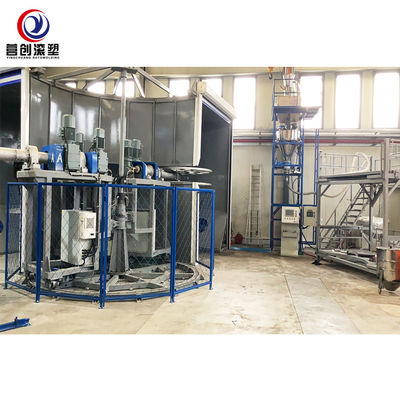

Fully Automatic Rotomolding Machine Rotomolding Mould Auxiliary Machinery
This equipment adopts Siemens 1200 control system. It analyses the temperature, arm, heating time and position of the equipment, adopts digital system analysis, prevents unnecessary loss caused by misoperation, and has alarm system, collects fault data of combustion system, temperature and time data, collects balance data of motor arm motor current system, manages data of cooling system and so on. . Modular control is adopted, each car, oven, cooling, equipped with an independent electrical system, reserved for adding station interface, man-machine operating system... The communication mode adopts the promotion of industry 4.0 in the 21st century, communication and stable communication signal. This method solves the problems caused by line failure, and equipped with remote terminal maintenance module, which is used for remote maintenance, maintenance and technical updating of equipment, improves the efficiency brought by after-sales and technical support, equipped with remote control, facilitates the disassembly and assembly of molds, and improves production efficiency.
Specifications
Model No |
Floor size | Biggesttank made |
|||
| L(m) | W(m) | H(m) | Operating platform | ||
| CC-3A-1000 | 6.5 | 5 | 2.3 | × | 150L |
| CC-3A-1600 | 9 | 7.5 | 3.1 | × | 500L |
| CC-3A-2000 | 10 | 8 | 3.6 | × | 1000L |
| CC-3A-2500 | 15 | 9 | 4.6 | √ | 2500L |
| CC-3A-3000 | 16 | 11 | 5 | √ | 4500L |
| CC-3A-3500 | 18 | 11 | 5.5 | √ | 7000L |
| CC-3A-4000 | 19.5 | 14 | 6.2 | √ | 10000L |
| CC-3A-4500 | 22 | 15 | 6.8 | √ | 14000L |
Model No |
Floor size | Biggesttank made |
|||
| L(m) | W(m) | H(m) | Operating platform | ||
| CC-4A-2000 | 11 | 9 | 3.8 | × | 1000L |
| CC-4A-2500 | 14 | 10 | 4.5 | √ | 2500L |
| CC-4A-3000 | 17 | 11 | 5.3 | √ | 4500L |
| CC-4A-3500 | 18 | 13 | 6 | √ | 7000L |
| CC-4A-4000 | 21 | 15 | 6.5 | √ | 10000L |
| CC-4A-4500 | 22.5 | 17 | 7 | √ | 14000L |
Equipment advantages:
1, the oven adopts a circular oven structure, the space utilization rate is high, and it is more energy-saving.
2, the oven uses a fabricated structure, an oven is divided into 4 or 5 and 6 pieces of assembly
3, the heating method adopts the principle of hot gas going up, heating faster, high efficiency, more energy saving
4, the burner is imported from the Italian Liya Road brand
5, control system Siemens S7-1200 network cable communication method to collect data, reduce the problem of conventional lines, the line laying more beautiful
6, Yingchuang Rotomolding Equipment Co., Ltd. accepts the personal customization and design of all customers, and determines the final needs of customers according to the needs of customers, so that customers are satisfied, we can rest assured
7, 24 hours service call +8615967190727 (WhatsApp)
