| Brand Name: | yingchuang |
| Model Number: | YCB-2500(4500) |
| MOQ: | 1 Acre/Acres |
| Price: | advisory service / Acres |
| Packaging Details: | Wooden box |
Multifunction 3 Arm And 4Arm Rotomolding Machine For Sale 24 Hours Service

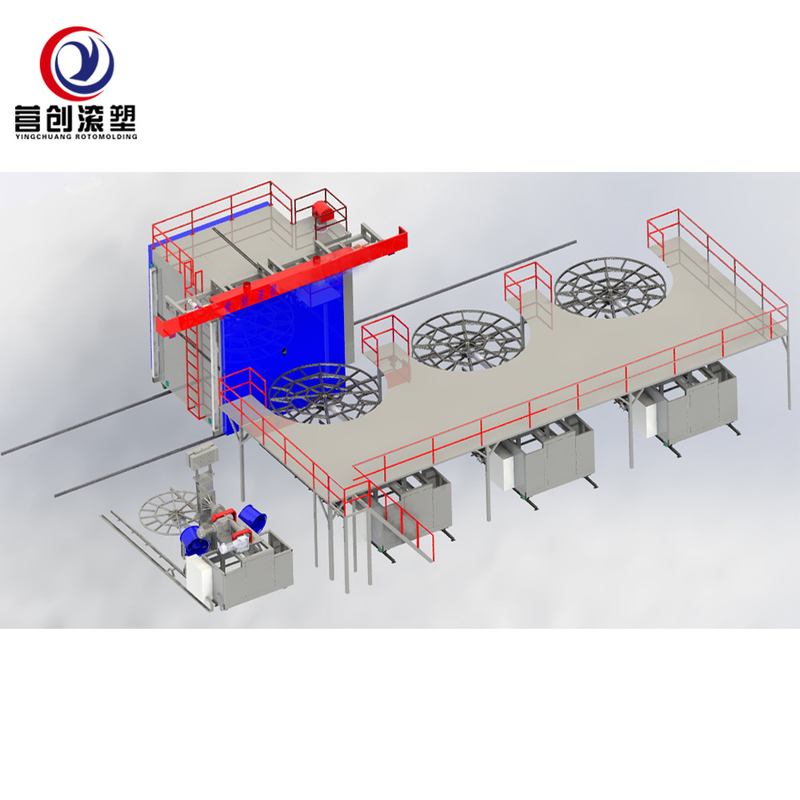

Shuttle style rotational molding machine is placed along a straight line with oven and two mainframes in its center. Cooling chamber and loading station in both sides. When one arm on one side rotating the mold into the oven to get heated, the molds on other arm can be demoulded or adding material.
In this way, the operation is flexiable for manufacturing comparatively large product. Even for comparatively small product, productivity is high. Besides, equipment is relatively simple and easy to be maintained. At present, this kind of rotational molding machine is broadly used in our country.
Model No |
Floor size | Biggesttank made |
|||
| L(m) | W(m) | H(m) | Operating platform | ||
| CS-3A-2500 | 15 | 9 | 4.6 | √ | 2500L |
| CS-3A-3000 | 16 | 11 | 5 | √ | 4500L |
| CS-3A-3500 | 18 | 11 | 5.5 | √ | 7000L |
| CS-3A-4000 | 19.5 | 14 | 6.2 | √ | 10000L |
| CS-3A-4500 | 22 | 15 | 6.8 | √ | 14000L |
Model No |
Floor size | Biggesttank made |
|||
| L(m) | W(m) | H(m) | Operating platform | ||
| CS-4A-2500 | 14 | 10 | 4.5 | √ | 2500L |
| CS-4A-3000 | 17 | 11 | 5.3 | √ | 4500L |
| CS-4A-3500 | 18 | 13 | 6 | √ | 7000L |
| CS-4A-4000 | 21 | 15 | 6.5 | √ | 10000L |
| CS-4A-4500 | 22.5 | 17 | 7 | √ | 14000L |
Equipment advantages:
1, the oven adopts a circular oven structure, the space utilization rate is high, and it is more energy-saving.
2, the oven uses a fabricated structure, an oven is divided into 4 or 5 and 6 pieces of assembly
3, the heating method adopts the principle of hot gas going up, heating faster, high efficiency, more energy saving
4, the burner is imported from the Italian Liya Road brand
5, control system Siemens S7-1200 network cable communication method to collect data, reduce the problem of conventional lines, the line laying more beautiful
6, Yingchuang Rotomolding Equipment Co., Ltd. accepts the personal customization and design of all customers, and determines the final needs of customers according to the needs of customers, so that customers are satisfied, we can rest assured
7, 24 hours service call +8615967190727 (WhatsApp)
