Customized Rotational Molding Kayak aluminum Mold for Casting Mould Applications

Brand Name:	YingChang
Model Number:	YC-BZD
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

changzhou,jiangsu

Certification:

CE,ISO9001

Document:

Condition:

Process Type:

Rotary Forming Mold

Mold Installation:

Semi-fixed Mold

Quality System:

ISO9001

Shape:

Customized

Cavity:

Single/Multi

Shaping Mode:

Rotational Mold

Applicable Industries:

Manufacturing Plant

Product Description

Product Description:

Customized Rotational Molding Kayak aluminum Mold for Casting Mould Applications 0

Here's an introduction to kayak rotomolding aluminum molds, covering their role, advantages, disadvantages, and key considerations:

Core Concept

Rotational Molding (Rotomolding) is a process used to create large, hollow, seamless plastic parts like kayaks. An **aluminum mold** is a critical component in this process specifically designed for shaping kayaks. It's mounted on a machine that rotates it biaxially (around two perpendicular axes) inside an oven, then a cooling chamber.

Why Aluminum is Preferred for Kayak Rotomolds

1. Excellent Thermal Conductivity:

Key Advantage:** Aluminum heats up and cools down much faster than steel.

Benefit:Significantly reduces cycle times (the time per kayak), increasing production efficiency and lowering energy costs. Faster cooling also improves part crystallinity and properties.

2. Lightweight:

Key Advantage: Aluminum is much lighter than steel (about 1/3 the density).

Benefit:Easier and safer handling during mold changes, installation on rotomolding machines, and general movement. Reduces stress on the machine arms/spindles, especially important for large kayak molds.

3. Superior Machinability:

Key Advantage:Aluminum is relatively soft and easy to machine, weld, and repair.

Benefit:

* Faster mold fabrication time.

* Lower initial tooling cost compared to steel.

* Easier to incorporate complex kayak shapes, details (like hatch recesses, deck lines, contours), and texture.

* Simpler modifications and repairs during the mold's lifetime.

4. Good Surface Finish:

Key Advantage: Aluminum can be machined and polished to a very smooth finish.

Benefit:Produces kayaks with excellent surface quality straight out of the mold. Holds fine details well. Can also be textured via chemical etching or media blasting.

5. Corrosion Resistance:

Key Advantage: Aluminum naturally forms a protective oxide layer.

Benefit: Better resistance to rust and degradation from water spray during cooling or environmental humidity compared to untreated steel. Improves mold longevity.

Limitations & Considerations for Aluminum Kayak Molds

1. Lower Hardness & Wear Resistance:

Key Limitation:Aluminum is softer than steel.

Consideration:

* More susceptible to scratches, dents, and wear, especially during demolding (removing the kayak) or handling.

* Lifespan is typically lower than steel molds, especially for high-volume production runs (thousands of cycles).

* Mitigation:Often hardened via anodizing or plated (e.g., nickel plating) to improve surface hardness and durability.

2. Potential for Warping:

Key Limitation: Aluminum has a higher coefficient of thermal expansion than steel.

Consideration: Repeated heating/cooling cycles can cause more significant thermal stress and potential warping over time, especially in large or thin-walled mold sections. Robust design and adequate wall thickness are crucial.

3. Higher Initial Cost vs. Cast Aluminum (but lower than Steel):

Consideration:Machined aluminum molds are more expensive than cast aluminum molds. However, they offer better precision, surface finish, and durability than cast aluminum, while still being cheaper than machined steel molds.

Key Design & Manufacturing Aspects

1. Material:Typically high-grade, weldable aluminum alloys like 6061-T6 or 7000 series are used for their strength and machinability.

2. Wall Thickness:Must be sufficient to resist warping under thermal cycling and internal pressure, but balanced against weight and cost. Thicker walls improve durability but increase weight and reduce thermal efficiency slightly.

3. Machining: CNC machining is standard for precision and achieving complex kayak hull and deck geometries, sharp details, and smooth surfaces.

4. Venting: Critical! Small vent tubes allow air to escape as the plastic powder melts and flows, preventing air bubbles and ensuring the plastic reaches all parts of the mold cavity. Poor venting leads to defects.

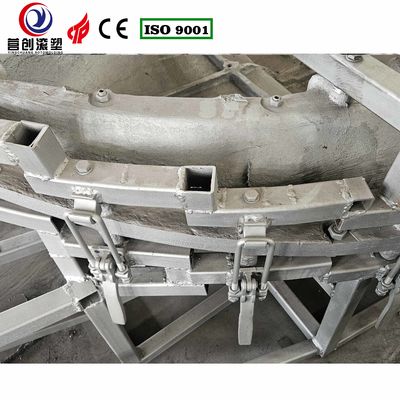

5. Clamping System:Robust clamps and flanges are needed to securely hold the two mold halves together during rotation under heat and pressure.

6. Mounting:Designed with strong mounting points (bosses, flanges) compatible with the specific rotomolding machine's arms.

7. Surface Treatment:Often anodized or nickel-plated to enhance surface hardness, wear resistance, release properties, and corrosion resistance. Mold release agents are still essential.

Comparison to Steel Molds for Kayaks

Feature	Aluminum Mold	Steel Mold
Cost	Lower Initial Cost	Higher Initial Cost
Weight	Much Lighter	Much Heavier
Thermal Conductivity	Excellent (Faster Cycles)	Good (Slower Cycles)
Machinability	Easy & Fast	Difficult & Slow
Durability	Lower (Softer)	Very High (Harder)
Warp Resistance	Lower (Higher Expansion)	Higher
Surface Finish	Easier High Quality	Achievable, but harder
Best For	Prototypes, Mid-Volume, Complex Shapes	Very High Volume Production

Conclusion

Aluminum molds are the **predominant choice** for manufacturing rotomolded kayaks. Their excellent thermal conductivity, lightweight nature, machinability, and good surface finish make them highly efficient and cost-effective for the production volumes and complex shapes typical in the kayak industry. While they may not last as long as steel molds under extremely high-volume production, their advantages in speed, cost, and ease of fabrication make them the ideal solution for most kayak rotomolding applications. Careful design and potential surface hardening are key to maximizing their lifespan.

Technical Parameters:

Mold Type	Casting Mould
Condition	New
Shaping Mode	Rotational Mold
Warranty	1 Year
Weight	Advisory Service
Cavity	Single/Multi
Mold Life	100,000-1,000,000 Shots
Origin	Jiangsu, China
Shape	Customized
Applicable Industries	Manufacturing Plant

Company Profile:

Customized Rotational Molding Kayak aluminum Mold for Casting Mould Applications 1

Support and Services:

The Product Technical Support and Services for the Rotomolding Mould product include:

- Assistance with product installation and setup

- Troubleshooting guidance for any technical issues

- Maintenance recommendations to ensure optimal performance

- Training sessions for operators on how to use the product effectively

Packing and Shipping:

Product Packaging for Rotomolding Mould:

The Rotomolding Mould will be securely wrapped in bubble wrap to prevent any damage during transit. It will then be placed in a sturdy cardboard box with ample padding to ensure safe delivery.

Shipping Information:

The Rotomolding Mould will be shipped via a reliable courier service within 2 business days of placing your order. You will receive a tracking number to monitor the progress of your shipment.

FAQ:

Q: What is the Brand Name of this Rotomolding Mould product?

A: The Brand Name is YingChang.

Q: What is the Model Number of this Rotomolding Mould product?

A: The Model Number is YC-BZD.

Q: Where is this Rotomolding Mould product manufactured?

A: This product is manufactured in Changzhou, Jiangsu.

Q: Is the Rotomolding Mould product suitable for large-scale production?

A: Yes, this product is designed for large-scale production.

Q: Can customized designs be made with this Rotomolding Mould product?

A: Yes, customized designs can be made using this Rotomolding Mould product.
